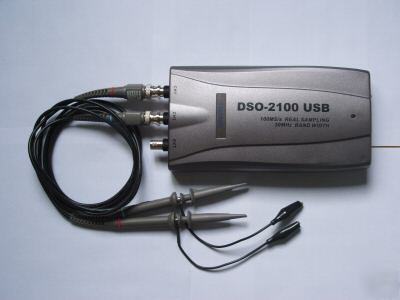

Usb digital oscilloscope 100MS/s sample rate portable
Usb digital oscilloscope 100MS/s sample rate portable
item photo item photo item photo
High performance USB digital storage
USB power supply directly. No external power supply required.
Calibration signal output: 1kHz, VP-P: 2V
The Wave view can be expanded simply.

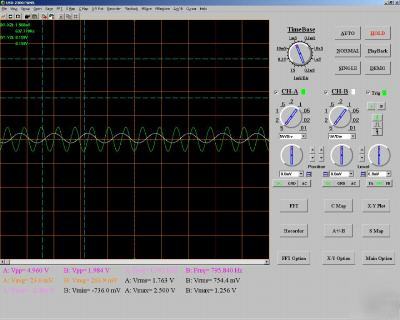

Frequency Spectrum Scope (FFT) / Lissajous pattern (X-Y PLOT)/S MAP/ C MAP.
The variables of input signal be calculated and displayed. User can adjust the displayed location and color.
Auto calibration every time when the USB scope is connected.
Menu style can be selected.
Marker, hot key, color setting and graphic operation .
Intelligence frequency search and trace.
Hardcopy Function: Simple "Copy" and "Paste" into other applications such as Word, Excel.
Channel operation wave map.
Waveform can be exported into Excel file with voltage
Small Size(19.0 cm * 10.0 cm * 4.0 cm) and Metal cabinet.
One To More. Several USB Digital Oscilloscopes can be connected with one computer and run correctly.
Software support: Windows98,Windows Me, Windows NT, Windows 2000, Windows XP.
yes (30Hz to 30MHz, 35Vp-p max)
Sampling rate of most real time
Speediness rich surname transform
S/W CD, probes, manual, USB cord
Specification for two 100MHz probes:
* General Purpose, Bench or Field
* Economical, Yet High Quality
* High Input Impedence (X10 range)
* Useable with scopes having Bandwidth up to 100 MHz
* Interchangeable Probe Tip
* Compensation range: 15 to 35 pF
* Input Capacitance: 1X: 85pF-115pF; 10X: 14.5pF-17.5pF
* Input Resistance: 1X: 1Mohm; 10X: 10Mohm;
* Bandwidth: 1X: DC-4MHZ, 10X: 100MHz
* Attenuation Ration: 1:10
* Operating Temp: -10C-50C
* Operating Humidity: <=85%
* Maximum Input Voltage: 1X: 150 VDC, 2X: 300 VDC
3) Software CD (free life-time upgrade);
One-year warranty from the manufacturer.
