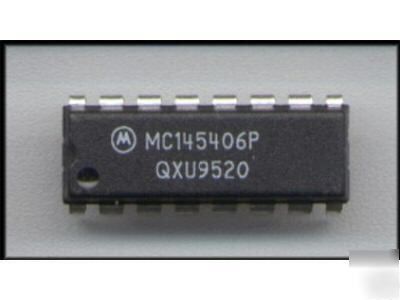

> 145406 / MC145406P / MC145406 / motorola
145406 / MC145406P / MC145406 / motorola
145406 / MC145406P / MC145406 / motorola
Now over 1,000 items in our Store!
The MC145406 is a silicon–gate CMOS IC that combines three drivers and three receivers to fulfill the electrical specifications of standards EIA 232–E and CCITT V.28. The drivers feature true TTL input compatibility, slew–rate–limited output, 300–
W power–off source impedance, and output typically switching to within 25% of the supply rails. The receivers can handle up to ± 25 V while presenting 3 to 7 kW impedance. Hysteresis in the receivers aids reception of noisy signals. By combining both drivers and receivers in a single CMOS chip, the MC145406 provides efficient, low–power solutions for EIA 232–E and V.28 applications.
300–W Power–Off Source Impedance
25 V Input Voltage Range When VDD = 12 V, VSS = – 12 V
Hysteresis on Input Switchpoint
