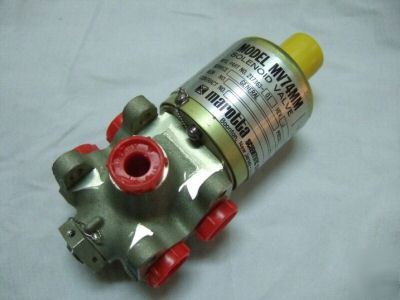

Marotta MV74MM solenoid valve 3WAY 2POS 1/4'' 3000PSIG
Marotta MV74MM solenoid valve 3WAY 2POS 1/4'' 3000PSIG
1 Brand New, 3-way, 2-position, self-manifolding, 1/4", 0-3,000 psig.
In the de-energized position, Port “A†is blocked by the poppet, which is held against the normally closed seat by the poppet return spring. Port “B†is directly open to Port “Câ€, permitting free flow in either direction.
With voltage applied, the solenoid armature assembly moves the poppet away from the normally closed seat and onto the normally open seat. Now, Port “A†and Port “C†are interconnected and Port “B†is sealed from Port “Câ€.
The valves are a balanced poppet design, requiring a relatively small solenoid actuator. This feature conserves power and minimizes the space required for installation.
Note: The listed performance data represents specific program requirements and not the design limitations of the device. Valves for 10,000 psi operating pressure also available.
PDF spec sheet: http:// /DataSheets/MV74MM.pdf
