New miller 907099-01-1 dynasty 200DX tig welder
New miller 907099-01-1 dynasty 200DX tig welder

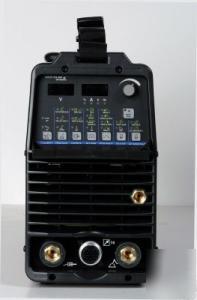

MILLER 907099-01-1 DYNASTY 200DX TIG WELDER NEW
Miller Dynasty 200 DX #907099-01-1 These are all factory fresh, not used, and not reconditioned.
Maximum flexibility - Miller Electric combines advanced inverter technology with Auto-Line technology, offering the most flexible AC/DC TIG/Stick power supply in the welding industry.
Advanced Squarewave arc for improved weldability on aluminum and magnesium using low power. Continuous high-frequency is NOT needed because of the advanced Squarewave arc.
AC frequency control range of 20 - 250 Hz provides control for a focused arc, resulting in better directional control to help produce desired arc/weld bead characteristics.
Built-in pulser reduces heat input; adds arc stability (DX model only).
Fan-On-Demandcooling system only operates when needed.
Auto-Lineprovides state-of-the-art flexibility by automatically connecting to 120-460 VAC, single- or three- phase power without removing the covers to relink the power source. No longer is there a concern if you have the correct machine for the shop or the job site.
Portable in the shop or at the job site - at 45 lb the unit is easily moved from location to location.
Superior TIG/Stick arc performance on all input voltages. Even on the difficult-to-run electrodes like E6010.
Low OCV Stick is a simple design that reduces
open-circuit voltage to 5-10 VDC when power source is not in use. This built-in circuit design eliminates the need for add-on voltage reducers.
Inverter-based, AC/DC power source has state-of-the-art operator interface allowing the user extra set-up capabilities in a compact machine. Features more precise control of output parameters.
HF arc starting provides non-contact arc starting that eliminates tungsten or material contamination.
Lift-Arcstart provides TIG arc starting without the use of high frequency.
Programmable HF start parameters allows the operator to independently set HF starting conditions based upon process or application.
Extended Balance Control range (30-90% EN) allows precise cleaning control and prolonged tungsten life.
Wind Tunnel Technology is an Internal air flow that protects electrical components and PC boards from dirt, dust, and debris, greatly improving reliability.
Keeps output of the power source constant regardless of fluctuation in input power 10%.
Squarewave technology is the AC output of a power source that has the ability to rapidly switch between the positive and negative half cycles of alternating current.
Internal components are protected from damage by thermal overload protection hich automatically shuts down the unit if duty cycle is exceeded or air flow and cooling are restricted.
* Pulsed TIG (GTAW-P) with DX model only
Industrial to Heavy Industrial Apps
* 200 A at 18 V, 20% Duty Cycle
* 150 A at 16 V, 60% Duty Cycle
* 140 A at 15.6 V, 40% Duty Cycle
* 100 A at 14 V, 100% Duty Cycle
* 200 A at 28 V, 20% Duty Cycle
* 130 A at 25.2 V, 60% Duty Cycle
* 100 A at 24 V, 60% Duty Cycle
* 90 A at 23.6 V, 100% Duty Cycle
* 1-200 Amps (1-150 on 120 VAC)
Sales Tax is applicable in the following states: Minnesota.
Weldfabulous guarantees all of our items to work and be free from manufacturer's defects.
We are open Monday through Friday from 8AM through 4PM CST. You can call us at (***)-494-5169. If there is no answer, please leave a message and we will call you back during normal business hours. Email: (BEST AND FASTEST) J_Curry@dontscrapit.com Emails will be returned during normal business hours.
Weldfabulous is your one stop shop for all of your welding and industrial supply needs. We handle a wide selection of high quality name brand items. Our selection includes, but not limited to, Miller Electric welders and plasma cutters, Thermal Dyanmics, Lincoln Electric, Milwaukee Electric, Tillman, Direct Wire and Cable, Ridgid Tool.
