Hp agilent 11612A bias network 45 mhz to 26.5 ghz -mint
Hp agilent 11612A bias network 45 mhz to 26.5 ghz -mint
HP / Agilent 11612A Bias Network, 45 MHz to 26.5 GHz

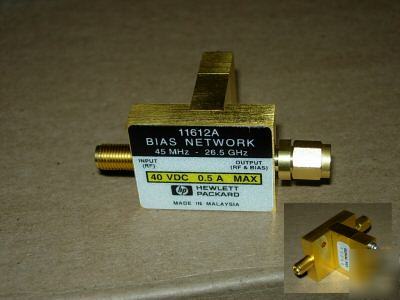

Agilent 11612A Product Photograph
The Agilent 11612A broadband high power bias network can be used in a wide variety of biasing applications for test and measurement requirements in laboratory and production environments. Bias networks provide the means of supplying DC bias to the center conductor of the coax connector for your device while blocking the DC to the RF port.
* Frequency Range: 45 MHz to 26.5 GHz
* Insertion loss (dB): 0.8 (<12.4 GHz), 1.3 (<26.5 GHz)
* Maximum SWR (dB): 1.22 (<8 GHz), 1.29 (<18 GHz), 1.5 (<26.5 GHz)
* Standard connectors: RF input-3.5mm (f), RF output-3.5mm (m), DC bias-SMB (m)
* Cable: SMB (f) to BNC (m) included
* Temperature: Warranted performance over 0 to 55 degrees C unless otherwise noted.
* Frequency Range: 45 MHz to 26.5 GHz
* Insertion loss (dB): 0.8 (<12.4 GHz), 1.3 (<26.5 GHz)
* Maximum SWR (dB): 1.22 (<8 GHz), 1.29 (<18 GHz), 1.5 (<26.5 GHz)
* Standard connectors: RF input-3.5mm (f), RF output-3.5mm (m), DC bias-SMB (m)
More questions, please email us
* 10 day DOA Guarantee by BoteQ.com
* Local pick up is not offered.
