New honeywell direct coupled damper actuator ML6184C
New honeywell direct coupled damper actuator ML6184C

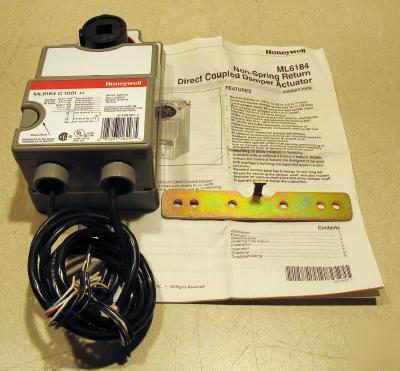

Honeywell Direct Coupled Damper Actuator ML6184C New
Honeywell Direct Coupled Damper Actuator ML6184C New
Honeywell Direct Coupled Damper Actuator ML6184C New
Honeywell Direct Coupled Damper Actuator ML6184C New
The ML6184 non-spring return direct coupled damper actuator provides Floating single pole double throw (SPDT) control of dampers in heating, ventilation, and air conditioning (HVAC) applications.
Mounts directly on 3/8", to 5/8" round and square damper shafts and 3/4" round damper shafts by using the approperiate insert.
Magnetic coupling eliminates the need for mechanical stops or limit switch adjustments by limiting stall torque to 250lb-in. maximum.
95 degree stroke provides necessary compression of rubber/neoprene gaskets commonly used on 90 degree low leakage dampers.
Removable splined output hub permits premounting of the hub on the damper shaft, providing installation flexibility.
Designed for both single-point and three-point mounting, providing installation flexibility.
standard models have two 8mm x 12mm long set screws for securing the damper shaft. Actuator models are available for various shaft sizes that will allow the damper shaft to operate centered inside the output hub.
2-AUX switches set at 12 and 82 degree hub for .5 inch square shaft.
Hawaii & Alaska will be extra.
Pickup at our warehouse is available for no additional charge by Appointment M-F 10-6 ONLY.
Temporary Email: Ronald.hanson@dontscrapit.com (Ronald Hanson)
