New one 500MHZ oscilloscope clip probe w/ readout pin
New one 500MHZ oscilloscope clip probe w/ readout pin
item photo item photo item photo

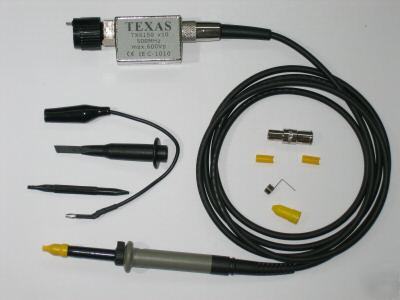

New 500MHZ Oscilloscope probes for Tektronix and HP Oscilloscope scope with read-out pin, X10, 1 unit + accessories
The TX6100 series fixed attenuator rate passive probe is only low frequency compensation trim and high frequency compensation trim. Without X1/X10 slide switch. This kind probe specialty is high system bandwidth and low input capacitance. System bandwidth is up to 500MHz. The cable length is up to 1.5M. It has three for high frequency adjustment's hole on the metal box. Only for oscilloscope input capacitance low than 18pF. If you must be for high frequency adjust. The best take it to careerman for assistance.
Low Frequency Compensation Adjustment:
* Low frequency response can be matched to the oscilloscope by adjusting the compensation trimmer on the head of the probe.
* Connect the probe to the oscilloscope and to a 1Khz square waveform source
* Set the oscilloscope to display two to the three cycles and two to six vertical divisions.
* Carefully adjust the trimmer tool to obtain the flattest tops to the square waves displayed on this oscilloscope,
* High Frequency compensation adjustment
High Frequency Compensation Adjustment
The high frequency compensation box cover located near the connector, Use the BNC adapter, connected the probe to a square wave generator operating between 10kHz to 1Mhz, to 1Mhz terminated into 50ohms. The square wave generator rise time should be approximately 125ns, Adjust each control until the leading edge of the waveform is as flat, square and horizontal as possible
* General Purpose, Bench or Field
* Economical, Yet High Quality
* High Input Impedance (X10 range)
* Useable with scopes having Bandwidth DC to 500 MHz
* Interchangeable Probe Tip
* Compensation range: 5 to 30 pF
* Input Capacitance: 10.8pF
* Input Resistance: 10Mohm when used with Oscilloscopes with 1Mohm input;
* Operating Temp: -10C-50C
* Operating Humidity: <=80%
* Maximum Input Voltage: 600 VDC (DC+peak AC)
TX6100 Series Fixed Attenuator Rate Passive-probe
1) One 500MHZ Oscilloscope probes with Mini Alligator Clip and ground lead;
