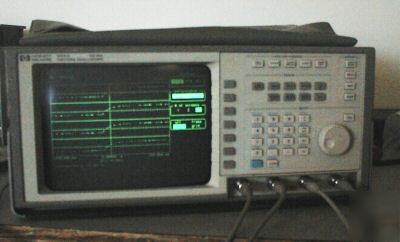

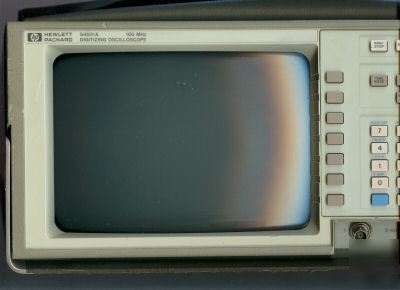

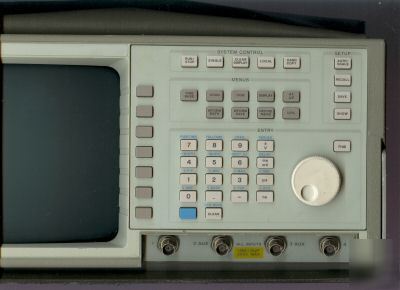

54501A 100MHZ digital four ch oscilloscope
54501A 100MHZ digital four ch oscilloscope
* Bandwidth (-3 dB) Dc-coupled Repetitive dc to 100 MHz
* Single-shot dc to 1 MHz Rise Time 3.5 ns
* Number of Channels 4 (2+2): Channels 2 and 3 are limited attenuator inputs, optimized for digital signals.
* Vertical Sensitivity Range 5 mV/div to 5 V/div (channels 1 and 2)
* Maximum Sample Rate 10 MSa/s
* Waveform Record Length 501 points (display)
* Input C 16 pF nominal Input Coupling ac, dc
CAUTION NOTE! A common failure for older 54501A’s is that the NVRAM fails to hold CAL factors. I have purchased several units which worked well after calibration, but once powered down, the CAL factors are lost. This one works fine.
