> 30" x 48" landis cylindrical grinder
30" x 48" landis cylindrical grinder
30" x 48" landis cylindrical grinder

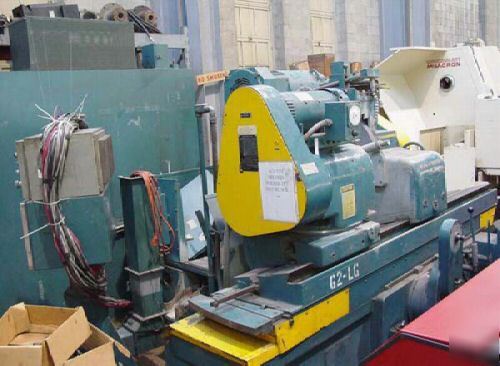

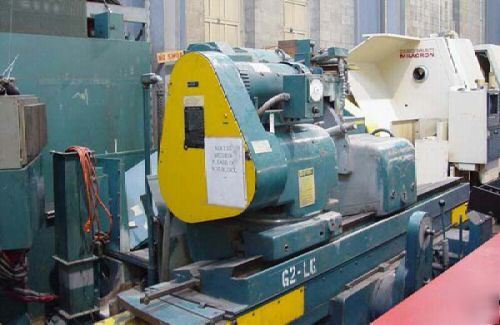

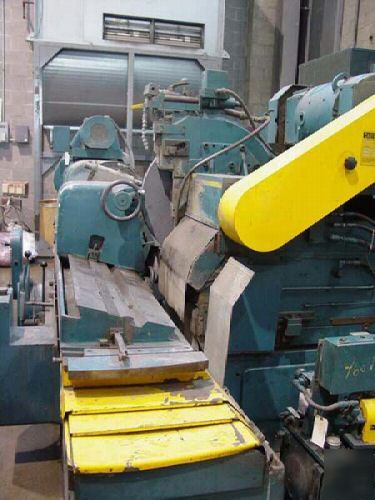

30" X 48" LANDIS PLAIN CYLINDRICAL GRINDER
Model CHW, New 1982 Rebuilt 2005, S/N 832-26

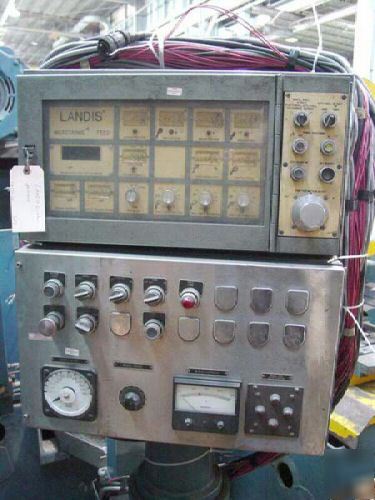

EQUIPPED WITH:Landis Microtronic Infeed Control, Digital Readout on Control, Tailstock
Mounted Wheel Dresser, 18 Degree Table Taper Adjustment, Variable Speed

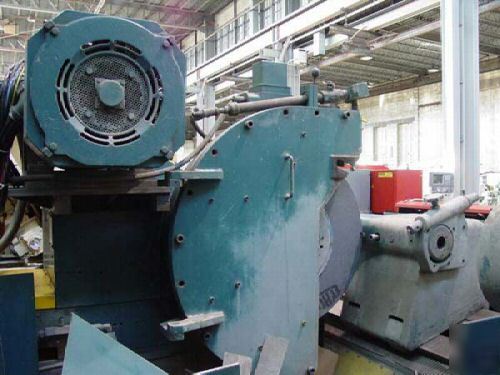

Workhead, Variable Speed Wheel Head, Swivel Work Head, Heavy Duty 40 HP
Wheel Head with 36" Diameter Wheel, Telescoping Way Covers, Variable
Speed Hydraulic Table Traverse, Coolant Tank. CATALOGUE SPECIFICATIONSSwing Over Table, Maximum.............................. 31 7/8"
Distance Between Centers............................... 48"
Grinding Wheel, Standard Dia........................... 36"
Grinding Wheel, Width.................................. 3"
Grinding Wheel, Hole Dia............................... 12"
Workhead Spindle Speeds................................ 8-120 RPM
Wheel Head Max SFPM.................................... 6000 SFPM
Wheel Head Speed....................................... 200 -1300 RPM
Longitudinal Table Feeds............................... 3"-130" IPM
Wheelhead Motor........................................ 40 HP
Workhead Motor......................................... 5 HP
Floor Space (L x W x H)................................ 159"X93"X90"
Approx. Weight......................................... 23,000 LBS. CONDITION: Machine was Rebuild by Landis in 2005. Rebuild included; All
Ways Rescraped, Table Piston Replaced, Microspheric Spindle Bearings
Rescraped and Reset, Microtrinic Control Cleaned and serviced. Machine
Appears to be in Excellent Condition.
