ARM & Intel XScale JTAG Emulator
ARM & Intel XScale JTAG Emulator

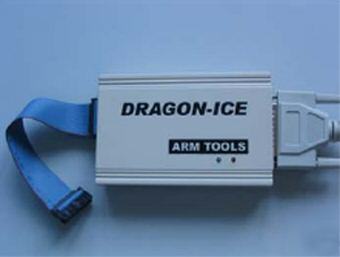

DRAGON-ICE is a JTAG In-Circuit ICE Emulator; DRAGON-ICE supports all ARM cores and Intel XScale. On functions, DRAGON-ICE series are compatible with ARM RealView Multi-ICE and Green Hill’s Probe and EPI MAJIC? probe, MAJIC-MX? probe and TRACE32. DRAGON-ICE can help you to debug your target hardware and software. You can use it to found problem of your target hardware, and download your software image into target and debug your software step by step and found problem of your software, and you can use it to program your software into flash. DRAGON-ICE accelerates your development process and shortens your development time, and help you success in development. DRAGON-ICE can completely replace with ARM RealView Multi-ICE and EPI MAJIC? probe, MAJIC-MX? probe, By Select DRAGON-ICE, you can reduce great much cost. We Provide Development Software and Debugger Software IDE with DRAGON-ICE, Including ARM Assembler, ARM C/C++, ARM Linker and Debugger.
Ø Supports wide range of ARM cores and Intel XScale
Ø Configurable JTAG rate to support variable speed clock devices
Ø Download:130KB/s with 10MHz JTAG Clock
Ø Easy to connect, compatible with a wide-rage voltage, Debug of very low voltage cores (1.5V)
Ø Target Flash memory programming
Ø Don’t occupy any resources other than JTAG chain on the target
Ø Fast communication, rapid speed up to 12M
Ø Stepping speeds greater than 60/second
Ø Host console I/O services (such as printf) without stopping the processor
Ø Attach to an already running target without halting
Ø Stop and start synchronization between microprocessors in multi-core ASICs
Ø Auto-detection and manual configuration capability for devices within an ASIC
Ø Open debugger interface support , support third part debugger which mates RDI1.50 or RDI1.51
Ø Supporting OS: Windows98/NT/Me/2000/XP, Linux
Supports most Compilers and most Debuggers:
Ø ARM SDT, ADS, ARM RealView RVDS, all versions
Ø Intel XScale software toolkit
Ø Mentor Graphics XRAY debugger
(1) Standard Version (DRAGON-ICE-ST)
· Supports most ARM7 and ARM9, as following:
· Supports Windows(98,me,2k,xp)；
· Supports ARM development and debugging software: SDT, ADS,IAR Workbench, Green Hills MULTI-IDE
(2) Advanced Version (DRAGON-ICE-AD)
· Supports all ARM Core and Intel XScale, as following
Intel® XScale™ Microarchitecture
· Suppors Windows(98,me,2k,xp) and RedHat Linux;
· Supports ARM development and debugging software: SDT, ADS,IAR Workbench, Green Hills MULTI-IDE, EPI EDB, MetaWare SeeCode, Intel XScale software toolkit;
· Supports Nucleus Plus, WinCE Platform Builder
(3) Universal Version (DRAGON-ICE-UN)
· Supports all ARM Core and Intel XScale, as following
Intel® XScale™ Microarchitecture
· Supports Windows(98,2k,xp) and RedHat Linux;
· Supports most ARM development and debugging software:
SDT, ADS1.2, IAR Workbench, Green Hills MULTI-IDE, EPI EDB, MetaWare SeeCode, Intel XScale software
· Supports ARM's RealView® Debugger, ARM eXtended Debugger
· Supports Nucleus Plus, WinCE Platform Builder, Linux
Project Flow and Connecting With DRAGON-ICE
Ø 1x 20 pin JTAG interface cable
Ø 1x 14 pin to 20 pin JTAG interface board
Ø 1x DRAGON-ICE Server Software CD includes:
- ARM Development Software, Debugger
DRAGON-ICE-ST (Standard Version)
DRAGON-ICE-AD (Advanced Version)
DRAGON-ICE-UN (Universal Version)
