Pin diode switch SP5T sma m/a-com 2674-9004 0.5-18 ghz
Pin diode switch SP5T sma m/a-com 2674-9004 0.5-18 ghz

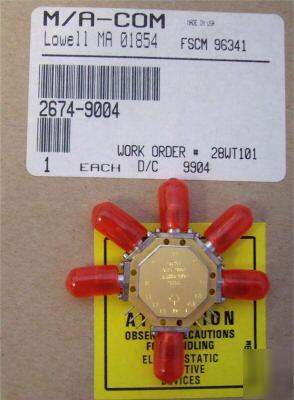

This item is a NEW NOS (we purchased from M/A-COM when they discontinued the product line) PIN Diode SP5T RF Switch, with SMA Female connectors. Make me an offer!
Switching Speed: <1 microsecond
Isolation: >65 dB spec (All the switches we have are >70 db from the actual M/A-COM acceptance test data sheet which came with the switches).
Insertion Loss: <4.0 dB spec (The switches we have are mostly <3 dB)
Return Loss (Input and Output): >10 dB
DC Power: +5V @ <100mA, -15V @ 70 mA
TTL Control: 5-bit logic (L1, L2, L3 control lines)
Frequency Range Changed to reflect information on Narda drawing.
Temporary Email: VickieRamos@dontscrapit.com (Vickie Ramos)
