Tek active probes a/n and oscilloscope probe circuits
Tek active probes a/n and oscilloscope probe circuits

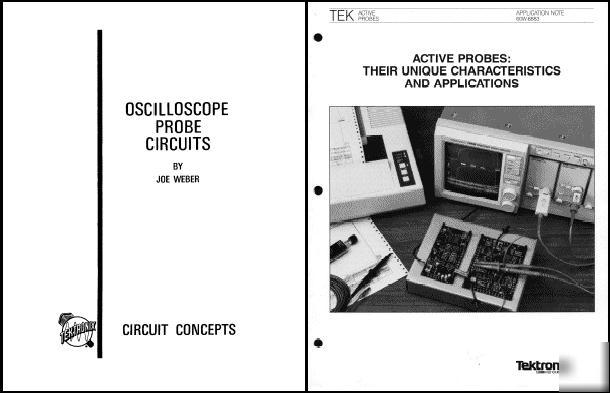

App Note: Active Probes: Their Unique Characteristics and Applications
Publication: Oscilloscope Probe Circuits (by Tektronix)
Here are two sources of information that every person using oscilloscopes should have access to:
Active Probes: Their Unique Characteristics and Applications is a 12 page document with the following sections:
Active Probe Types: FET, BiPolar, Differential
Active Probe Principals: Basic Differences between Passive and Active Probes
Degraded Risetime Due to Capacitive Loading
Probe Charging Capacitance - Ground Leads Summary
Low Tip Capacitance - Effect on Risetime
Active Probe Features and Benefits - Overview
Active Probe Operational Limits - Overview
The Importance of Linear Dynamic Range and DC Offset Specifications
Trouble-shooting and Evaluation of High Speed Circuitry
Ground Lead Ring Frequency vs System Bandwidth
Testing Probe Card Mounted Hybrids, Surface-Mounted Devices and Wafers
OVERVIEW -TEKTRONIX ACTIVE PROBE CHARACTERISTICS
Oscilloscope Probe Circuits is a 116 page document with the following sections:
Both documents include a great deal of information about the theory of operation behind Tektronix Probes, presented in text, schematics, pictures and graphs.
Two PDFs of each document are provided, in two resolutions. One is:
Text-only pages scanned at 400dpi minimum
Pages with photos at 400dpi (minimum) 256 shade grayscale with contrast individually adjusted in prescan(s) of every page
Both high resolution PDFs are fully-bookmarked and completely hyperlinked.
You also get a second scan of each, done in resolutions that vary depending on individual page content, but are never higher than needed to produce a useable quality, quickly navigable text-searchable document that will do the job without consuming more time and resources than are needed.
