Torchmate cnc plasma cutter tube pipe cutting fixture
Torchmate cnc plasma cutter tube pipe cutting fixture

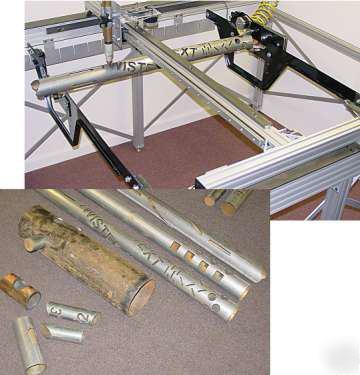

Torchmate Automatic Tube & Pipe Cutting Attachment
The Torchmate tube & pipe cutting attachment enables you to perform complex operations on tubing ranging from 1" to 8" in diameter. You can perform saddle cuts in the sides of tubing, fish mouth cuts on the ends, slots, holes of any shape, artistic designs, lettering, and much more.
The unit features a powerful magnetic drive wheel for steel and a urethane drive wheel for aluminum or stainless steel. An air nozzle blows a light stream of air through the tubing to carry away the smoke, and heat.
Two cradle assemblies are provided, with adjustable rollers to fit varying diameters. The cradles can be clamped in place, or will fit in 3/16" wide slat support slots.
The Tube Cutting Attachment's motor cable is plugged into the Y (short) axis connection on the power supply. The action of the tube turning in concert with the length- wise movement of the X axis produces any desired shape. A library of shapes common to tubing work is included.
This unit was designed specifically for use in our own Torchmate CNC Plasma Cutting Systems (sold separately). We can not guarantee its use in any other CNC plasma cutter or oxy-acetylene cutting system.
