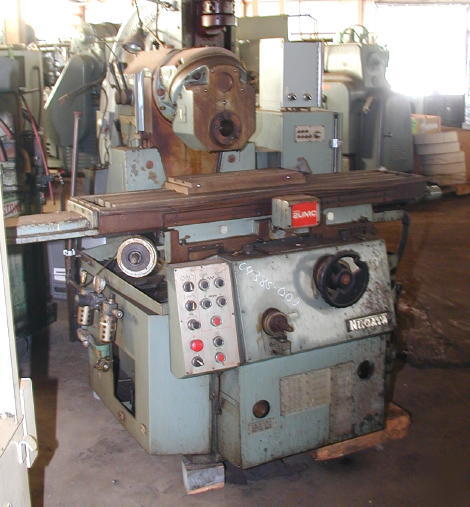

NIIGATA 20 MC UNIVERSAL BED TYPE PRODUCTION MILL
Serial No. 60806, New 1982
This machine has a double swivel universal milling head,
which allows the spindle orientation to be positioned
horizontally, vertically, or anywhere in between.
It has a bed type base and several automatic cycles
for either tool room or production oriented milling applications.
Head Vertical Travel: 15-3/4"
Height From Table to Vert. Spdl. Nose: 2 - 17-11/16"
Height From Table to Horiz. Spdl. Ctr. (with overarm): 17-3/4"
Height From Table to Horiz. Spdl. Ctr. (W/out overarm): 30"
Spindle Speeds: 40 - 1750 RPM
Table Feed Rates: 3/4 - 32 IPM
Vertical Feed Rates: 3/8 - 15-1/8 IPM
Rapid Traverse Rate: 120 IPM
Spindle Nose Taper: No. 50
Machine Weight, Approx.: 5800 Lbs.
(11) Pre-Set Automatic Milling Cycles
Automatic Rise & Fall of Spindle Carrier
Automatic Lubrication System
Automatic Backlash Eliminator
7.5 HP Spindle Drive Motor 220/440/3/60
All Items Subject to Prior Sale
Be Sure to Verify Specs & Condition Prior to Purchasing
