> New ECG1547 video chroma/demodulator horizontal driver

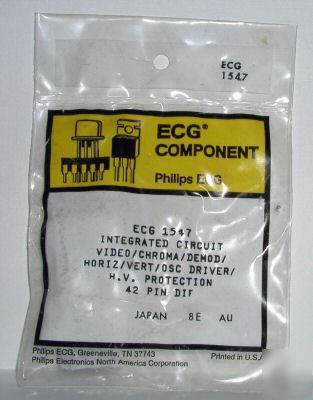

New ECG1547 video chroma/demodulator horizontal driver
New ECG1547 video chroma/demodulator horizontal driver
Video Chroma Deflection System
The NTE1547 combines the video–chroma subsystem and the deflection combination on a single monolithic integrated integrated circuit to provide a color television video–chroma–deflection system. This device includes a video amplifier, color demodulator that is designed to provide color differential output, and improved sync–separator, horizontal oscillator with saw tooth wave type AFC, horizontal pre–driver in a 42–Lead DIP type plastic package.
Minimum number of external parts required
Stabilized with respect to variation of temperature and supply voltage
A few initial adjustments required
Excellent temperature stability of horizontal oscillator
Exact 50% duty cycle output due to the 2–fH oscillator and flip–flop circuit
Stable sync separator with V/H input terminals.
The spec sheet for these can be found Here
