15 x RS232 to ttl adapter avr pic ARM7 - MAX232 MAX3223
15 x RS232 to ttl adapter avr pic ARM7 - MAX232 MAX3223

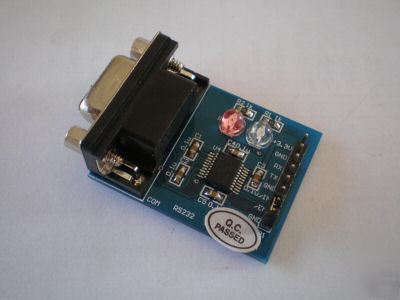

RS232 To TTL Adapter AVR PIC ARM7 - MAX232 MAX3223
1µA Supply-Current True +3V to +5.5V RS-232 Transceivers with AutoShutdown
# Built with MAX3223/SP3223 from MAXIM/SIPEX/TI
# Accepts 5V logic input with 3.3V supply
# /EN & /INVALID control pin in 8 pin Header for powerdown control
# Header pinout 1= 3V - 5.5 Vcc 2,5,8= GND 3= RX 4= TX 6=/IN(/invalid) 7= /EN (/en)
# RS232 To TTL Adapter AVR PIC ARM7 ARM9 - MAX232 MAX3223
Temporary Email: tracy-olsen@dontscrapit.com (Tracy Olsen)
