#9099 - landis 24PW landuroll thread roller
#9099 - landis 24PW landuroll thread roller

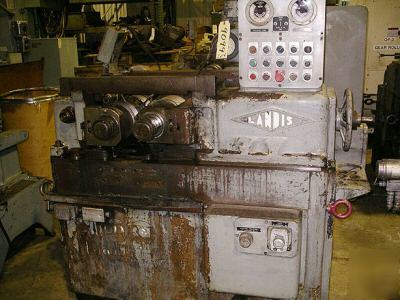

LANDIS MODEL 24PW LANDUROLL THREAD ROLLER
Rolling pressure variable to maximum 18 Tons
Finest pitch - UN or AN 40 TPI
Coarsest pitch - UN or AN 4 TPI
Coarsest pitch - acme & worm threads .3142 Linear, 3-1/4 TPI
Max. thread length - Thru feed 20'
Rolls - Minimum dia. 4-1/2" to Maximum dia. 8"
Roll center distance - min (slide forward) 6" to max (slide retracted) 10-13/16"
Spindle speeds - low range 8 Speeds: 22 - 132 to high speed range 8 Speeds: 43 - 250
Rolling pressure with std outboard bearing 36,000 lbs.
With heavy duty outboard bearing 45,000 lbs.
Floor space - infeed 86"W x 71" Deep
Boxes approx. 110" x 57" x 78"
