Hornell speedglas 9002X welding helmet w/adflo filter
Hornell speedglas 9002X welding helmet w/adflo filter

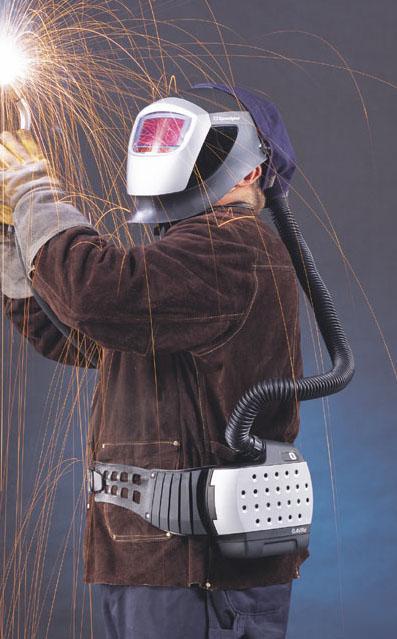

HORNELL SPEEDGLAS 9002X WELDING HELMET W/ADFLO FILTER
The Most Advanced PAPR Available
Exclusive "stackable" configuration adapts to changing welding applications.
Environmentally-friendly NiMH battery charges in less than 3 hours with a smart charger that won't ever overcharge.
System Intelligence: Constant Airflow Rate, regardless of battery charge and filter loading. Audible and visual alarms signal low airflow and low battery charge.
The unique belt design has a solid leather front, cut narrow to allow the welder to bend forward easily. Along the welder's sides, the leather becomes wider, with large ventilation holes for maximum breathability. The turbo unit securely attaches to, and is nestled between, the two plastic arms of the belt so the turbo's weight is evenly distributed across the entire lower back and upper hips. The plastic arms are vertically rigid but with pleats so the welder can move and turn with freedom.
Exclusive airflow pattern means perfectly-distributed air throughout the entire breathing zone of the helmet.
It's Two Respirators In One!
We've reinvented the powered air-purifying respirator for welders. The result is Speedglas with Adflo: a lightweight, compact, all-in-one system. Its exclusive "stackable" configuration means that the Adflo cartridge can be "stacked" onto the High Efficiency (HE) particle filter for additional protection against organic, sulfur dioxide, chlorine, and hydrogen chloride vapors.
In effect, it's two systems in one, allowing increased user flexibility to adapt to changing welding applications. And you can selectively replace either the particle filter or the Adflo OV/SD/CL/HC cartridge as needed: you don't have to change both filters at the same time!
The Adflo system has no external batteries, no battery cables, and no sharp corners. Its slim profile is designed to go into tight spaces. And it's the most ergonomically perfect PAPR available to welders.
Assigned Protection Factor: 25
Airflow (nominal): 6+ cfm (170+ lpm) minimum
HE + OV/SD/CL/HC: up to 5.5 - 6 hrs/charge
Battery Charging Time: 3 hours
Helmet assembly w/ 9002X lens: 1.79 lbs (0.81 kg)
Adflo Turbo w/ Battery, Breathing Tube & Belt: 4.48 lbs (2.03 kg)
OV/SD/CL/HC Cartridge: 1.79 lbs (0.81 kg)
Operating Temperatures: 23 to 131F (-5 to 55C)
Respirator Approval: NIOSH 42 CFR 84 (link to NIOSH: www.cdc.gov/niosh/homepage.html)
WARNING! Not to be used in atmospheres classified as IDLH. Not to be used in atmospheres of less than 19.5% oxygen. Final determination of respirator applicability and filter selection must be made by an on-site safety specialist or industrial hygienist.
Part Numbers for Complete Systems
HE + OV/SD/CL/HC Cartridge: 15-3301-21
21 = Speedglas 9002X lens
Extra large 4.09 in x 2.13 in (104 mm x 54 mm) viewing area and advanced electronics to handle a variety of welding processes, including extremely stable, low amp TIG arcs. Helmet with patented exhaust vents for reduced stuffiness.
Replacement Parts For Adflo
ReplacementFilters & Cartridges
15-0099-99X06 6-pack Adflo Prefilter
15-0099-99X12 12-pack Adflo Prefilter
15-0199-99X02 2-pack Adflo HE Particle Filter
15-0199-99X06 6-pack Adflo HE Particle Filter
15-0199-99X36 36-pack Adflo HE Particle Filter
15-0399-99X02 2-pack Adflo OV/SD/CL/HC Cartridge
15-0399-99X06 6-pack Adflo OV/SD/CL/HC Cartridge
15-0009-99X02 2-pack Adflo Spark Arrestor
Adflo Turbo Replacement Parts
15-1099-01 Adflo Turbo Assembly and Filter Cover without Filter or Cartridge or Battery
15-1099-81 Adflo Turbo Filter Cover
15-5401-01 Adflo Turbo, complete with Breathing Tube Assembly, Flow Indicator, Belt, Spark Arrestor, Adflo Turbo Filter Cover, Prefilter, HE Particle Filter, Battery and Smart Charger.
Miscellaneous Replacement Parts and Accessories
15-1099-07 Adflo Battery Pack
15-0099-08 Adflo Battery Smart Charger
15-0099-10 Adflo Breathing Tube Assembly (Rubber)
15-0099-16 Adflo Leather Belt
15-0099-06 Adflo Leather Belt Front Piece Replacement
NOTE: ALL PART NUMBERS LISTED ABOVE ARE FOR NORTH AMERICAN DISTRIBUTION ONLY.
