Hydraulic reservoir suction flanges
Hydraulic reservoir suction flanges

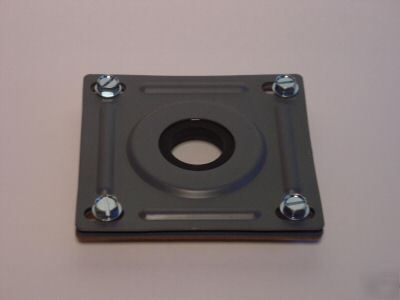

Hydraulic Reservoir Suction Flanges are designed to provide a leak proof seal for pipes/tubes passing through the reservoir top. All sizes can serve as an economical inspection port or easy removal of suction strainers.
Available pipe sizes include: 1/2 inch pipe, 3/4 inch pipe, 1 inch pipe, 1 1/4 inch pipe, 1 1/2 inch pipe and 2 inch pipe.
Available tube sizes include: 3/8 inch O.D. tube, 1/2 inch O.D. tube, 3/4 inch O.D. tube, 1 inch O.D. tube, 1 1/4 inch O.D. tube, 1 1/2 inch O.D. tube and 2 inch O.D. tube.
Also available in blank (no hole) size.
(4) 5/16-18NC mounting bolts included. Mounting hole centers are 4 1/4 inches square on center.
Internal washer/sealing gasket material: Buna-N
Overall size: 5 1/2 inches X 5 1/4 inches
PLEASE SPECIFY REQUIRED SIZE WHEN ORDERING
