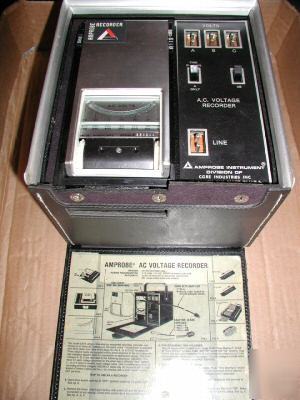

Amprobe a.c. voltage recorder model LAV3
Amprobe a.c. voltage recorder model LAV3
Used AMPROBE AC VOLTAGE RECORDER_very seldom use, IN LIKE NEW CONDITION
Power requirements: 115 Volts - 60 Hz
Accuracy: +/- 3% of full scale on sinusoidal wave forms
The model LAV3 using a time-sharing sequential recording principle, can record up to three AC voltages on the same chart. The recorder is supplied with three black cord sets which plug into the A, B, & C volt receptacles. Three adaptor leads are supplied which when attached to the cord sets provide insulated alligator clips for connection to distribution panels. The three voltages A, B, C are recorded in the following sequences: ABCBCC. The trace for each voltage recorded on the chart has a different "dot" pattern ( 1, 2 or 3 ) to identify each voltage trace. One complete sequence of recording all three voltages (ABCBCC) takes only 30 seconds with a chart speed of twelve inches per hour; six minutes with a chart speed of one inch per hour.

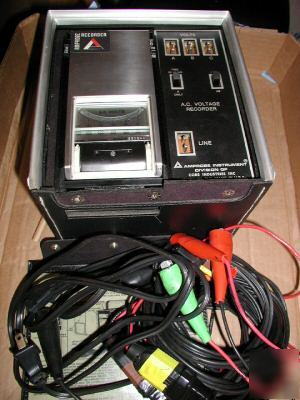

CORD SET SUPPLIED, ADAPTOR LEADS SUPPLIED.
by Amprobe Instrument Division of Core Industries Inc, Lynbrook, N.Y. Made in USA
