Cable 76 motorola 16-pin maxtrac GM300 vhf uhf repeater
Cable 76 motorola 16-pin maxtrac GM300 vhf uhf repeater

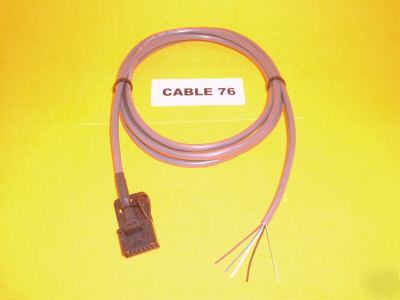

(One) 72" shielded cable assembly with perfect-fit latching plug at one end to mate with Motorola radios having a 16-pin rear accessory connector, i.e.: M10, M100 & M200 series, M1225, Radius, Maxtrac, GM300, etc.
This cable assembly features a high quality, flexible, 4-conductor cable with individually color-coded, stranded 24 awg conductors and an overall foil shield with drain wire (5-conductors total).
Five (5) pins of the radio connector are brought out to flying leads.
This cable is wired as follows:
8 Programmable Output (COR) RED
15 -16 Jumpered to enable internal speaker
These well-constructed cables are perfect for conveniently interfacing 16-pin Motorola radios to consoles, repeater controllers, tone panels, tone remote adaptors, TNCs, interconnects, etc.
Includes data sheet with connector pin numbers & wire color codes, AND a comprehensive 10-page set of instructions , describing radio functions and pinouts. Hard-to-find item, reasonably priced.
NOTE: Please view my other items (click on MRE Direct, above). I offer several different versions of this 16-pin cable, as well 20-PIN cables for the CDM and PRO series and other connector kits and parts. Special configurations (custom cable lengths, etc.) are available, too - with fast turnaround and no minimum order. If you don't see what you need, please ask.
