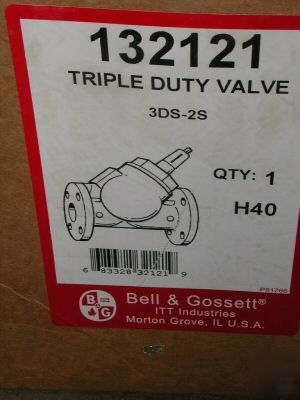

New bell & gossett triple duty valve 132121 3DS-2S
New bell & gossett triple duty valve 132121 3DS-2S
EscrowUnlt © AP6.0This listing is for a Bell & Gossett Triple Duty Valve 132121 3DS-2S New You will get:
* Bell & Gossett 3DS-2S, 2†Triple Duty Valve Straight Pattern (Less Flanges) New
* Performance Characteristics can be see here on the Bell & Gosset Site. Page 3 of 22.
* Literature on this valve is here
* Maximum Recommended Flow GPM / Hr: 275 (62 m3)
* These sell for about $660 - $912 New
The Triple Duty Valve is a quiet operating heavy-duty valve which performs all of the functions normally required on the discharge side of hydronic system pumps. The valve serves as a nonslam check valve as needed for zoned pumping, parallel and standby pumping, and condenser water applications. The spring loaded disk prevents valve chatter, and assures positive shutoff. Bell & Gossett's Triple Duty Valve has a calibrated nameplate for rough system balance. The Triple Duty Valve is also equipped with Model RV-125A brass readout valves for more accurate system balance. The calibrated nameplate allows the valve to be returned to the original balance position after shutoff. To repack under system pressure, turn the valve stem to the fully open position. Turning the valve stem to the closed position provides shutoff.
* CONSTRUCTION Body: Cast Iron with Bronze Seat
* Disc: Bronze with EPDM Seat Insert
* Packing: Teflon-Graphite (Asbestos-free)
* Readout Valve: Brass with EPT insert, Check Valve & Gasket
This is new and I guarantee no DOA.
