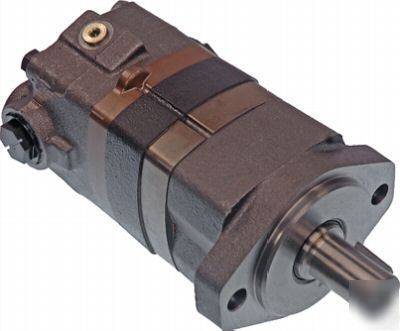

New eaton char-lynn hydraulic motor 104-1066 14.9CU in
New eaton char-lynn hydraulic motor 104-1066 14.9CU in
CHAR-LYNN SERIES 2000 LOW SPEED MOTOR
Features: GEROLER Displ Mechanism; Built-in Check Valves; Balanced Wear Compensated Valve; Tapered Roller Bearings.
Use 95% imput power to produce torque. 90% mech efficiency (min power loss due to friction factors). Equal torque either way, even with instant changes. Mount singly, in pairs,multiples in series or parallel systems.
* Model/part number 104-1066
* SAE A two bolt style mounting flange
* 1 1/4" dia stright keyed shaft
* 10 1/2" x 5 1/8" x 4 1/4" (incl shaft)
* Displ (cu in per/rev) 14.9
* GPM (max flow) cont. 20, int. 30
* RPM (max speed) cont. 308 int. 462
* PSI (max 1 1/4" dia shaft) cont. 3000. int. 3750, peak 4500
* Torque cont. 5850, int. 7250
* Max torque and flow must not occur simultaneously
