New wavecrest dts-2075-02 digital time system
New wavecrest dts-2075-02 digital time system
NEW Wavecrest DTS-2075-02 Digital Time System
Comes with what you see in the pictures. If you don't see it, you probably wont get it.
Specifications are from Wavecrest and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
Some of the images were taken from the manufacturer's website because we did not want to open the packaging.

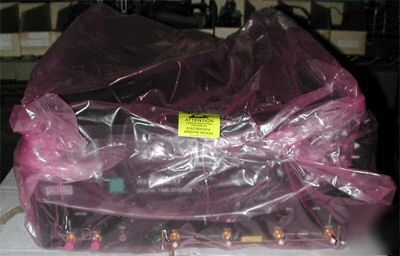

The item is NEW in the factory box and has all the accessories.
List Price is: $49,500.00 from Wavecrest
The Unit's Serial Number Tag Reads:
Link to the Manual: Wavecrest 207x Digital Time Scope System Manual
Winner of the “Best in Test†award from Test & Measurement World, the WAVECREST DTS-2075 provides the picosecond accuracy, femtosecond resolution, low noise floor and high-speed needed for the rapid characterization of semiconductor devices in the time, frequency and modulation domains.
The DTS-2075 helps design and characterization engineers fully analyze all aspects of jitter and other critical timing parameters of high frequency clocks and data communication devices, including pulse width, phase, propagation delays, rise and fall times, and period and frequency jitter components.
Operating either synchronously or asynchronously, the DTS-2075 is ideal for both stand alone benchtop operation and integration into ATE systems for use in production. The DTS-2075 permits 100% correlation of characterization and final test by directly supporting both applications.
Frequency Range: 0.4Hz to 800MHz
Jitter Noise Floor: < 6ps rms (3ps rms typical at cal frequency) (1)
Jitter Measurement Accuracy: < 2ps (2)
Frequency Measurement Range: 1PPM
Time Base Stability (Short Term Aging): 5x10-11
VREF Accuracy: ±(1.0 mV+0.05% of setting)
