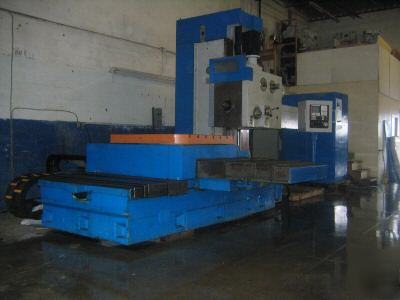

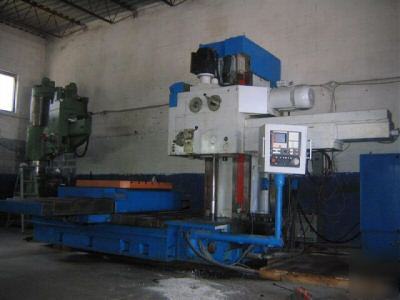

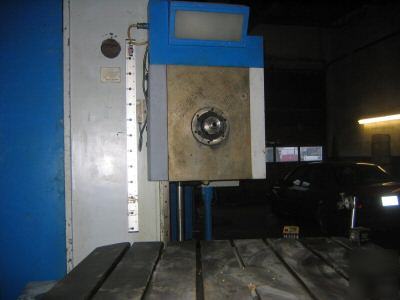

Stanko 2A622 cnc horizontal boring mill
Stanko 2A622 cnc horizontal boring mill
3D CNC Horizontal Boring Mill - It is not Point to Point Machine.

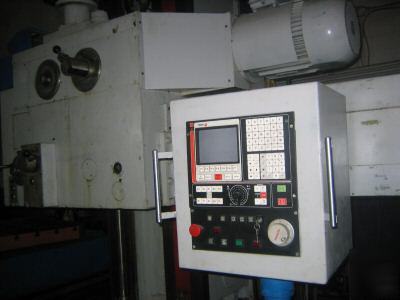

49.2" X 49.2" CNC Rotary Table (B Axis). DRO reading of quill travel on CNC (W Axis). Ball Screws on X, Y & Z Axes. Retrofitted in 2001 with FAGOR 8025MS 5 Axis CNC.
THE MACHINE IS IN VERY GOOD CONDITION. IT IS UNDER POWER READY FOR INSPECTION.
STANKO 2A622CNC HORIZONTAL BORING MILL
X Axis (Table cross travel) 49.2â€(1250mm)
Y Axis (Spindle up/down) 39.4â€(1000mm)
Z Axis (Table longitudinal travel) 39.4â€(1000mm)
B Axis (Rotary table) 360 000 programmed positions
W Axis (Quill travel) 28â€(710mm)
*DRO reading of quill travel on CNC
Table Size 49.2â€x 49.2â€(1250 x 1250mm)
Table Load Capacity 11025 lbs(5000kg)
Speed Range (Manual shifting) 10-1250 RPM
X,Y,Z,W Feed Rate 0.16-98.4 in/min
X,Y,Z,W Rapid Traverse 256 in/min (6500mm/min)
Maximum Rotary Table(B) Rotation Speed 3.2 RPM
Floor Area 283.5â€x 142.5â€(7200 x 3620mm)
Machine Weight 37485 lbs(17000kg)
For additional information or any questions please contact Detchko Kostadinov at MEstes@dontscrapit.com or call (***)-669-6470.
