Hioki 3561 battery hitester -hti
Hioki 3561 battery hitester -hti
"Your One Stop Source for Sales & Calibration of Test & Measurement Equipiment"

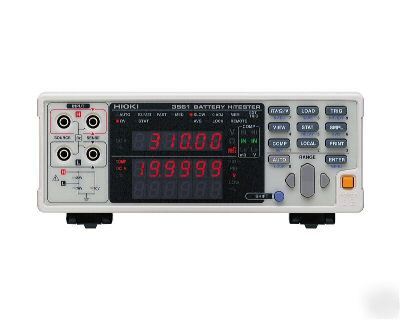

*Hioki 3561 Battery HiTester -HTI *
The Perfect Battery Tester for the Production Line
Measurement ranges and Accuracy 300 m-Ohm to 3 Ohm, 2 ranges, ±0.5 % rdg. ±5 dgt.
20 V, ±0.01 % rdg. ±3 dgt. (Input imperdance 1m-ohm)
Measurement current 10 mA (300 m-Ohm range) to 1 mA (3 -Ohm range)
Max. applied measurement voltage ±22 V DC rated input voltage
±70 V DC maximum rated voltage above ground
Sampling speed Four steps: 7 ms(Extra-FAST), 23 ms(FAST),
83/69 ms(Medium), 258/251 ms(Slow)
Displays 31,000 full digits (resistance), 19.9999 full digits (voltage), Fluorescent tube
Measurement method Four-terminal AC (1kHz) method
Comparator functions Setting: Upper and lower limit
Output: 3 levels (Hi, In, Lo) or (Pass, Fail), Open-collector, Display, Dual audible indicator
Panel save/load Up to 126 configuration settings
Other functions Over-range display, measurement error detection
Self-calibration, dual comparators, key-lock
Interface External I/O, RS-232C , Printer(RS-232C), GP-IB(3561-01)
PC Software Freeware: BATTERY HiTESTER 3561 Data Capture Software and BATTERY HiTESTER 3561 BIN Measurement Software
Power supply 100 to 240 V AC (50/60 Hz)
Dimensions, mass 215 mmW × 80 mmH × 295 mmD, 2.4 kg
GOODS: ALL our items are FACTORY NEW
Temporary Email: g.bright@dontscrapit.com (Gabriela Bright)
