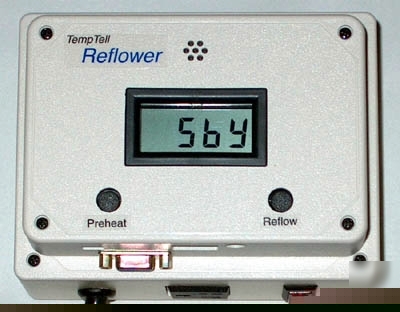

Reflower - Toaster/Convection Oven Reflow Controller
The Reflower is a device that controls a standard toaster oven to perform prototype and small batch surface mount solder reflowing operations. The Reflower can control ovens up to 1800 watts or 15 amps in size. The reflow temperature profile is customizable through its RS-232 interface to fit the user's requirements.
The Reflower comes bundled with Reflower Profile Maintanance Application, a 36" bare junction thermocouple, and a standard RS-232 cable for connection to your PC.
The Reflower Profile Maintanance Application is a PC program for maintaining temperature profiles on your computer. See the Reflower Software page for more information.
The Reflower can perform 3 types of cycles:
* Preheat cycle - gets the oven up to temperature.
* Reflow cycle - runs the oven through the pre-defined temperature profile.
* Bake cycle - used to drive the moisture from moisture-sensitive components.
The Reflower will accept commands through its RS-232 port to set the parameters for the programable temperature profile. The following parameters can be set:
The target temperature and actual temperature can be sent to the serial port for data logging. This data can be captured as text in a communications program. The graph below was created by capturing the text using Hyperterminal then graphing the results in Excel.
