Tektronix 317 dc to 10 mhz portable oscilloscope 001445
Tektronix 317 dc to 10 mhz portable oscilloscope 001445
This is a very sweet oscilloscope. A little large than the 310, but with fan cooling and a very bright trace. These were designed to be used in bright environments , like by telephone repair crews and others who worked out of doors. For this reason, it has a 9KV accelerating potential. And it is a very portable package. Dimensions 12 3/8" x 8 1/2" x 18 11/16". Weight 33 pounds.
Horizontal sweep .2 usec to 2 sec per division
Full amplitude calibrator 50 mv to 100 V, 1kHz
A manual for this oscilloscope can be downloaded free from http://bama.edebris.com/manuals/tek/317/
I have a complete set of spares for these units.
This unit is covered by my 30-day return and 1 year warranty. See the warranty page for specifics.
If you have any questions or would like additional pictures please email me at karina-bowman@dontscrapit.com

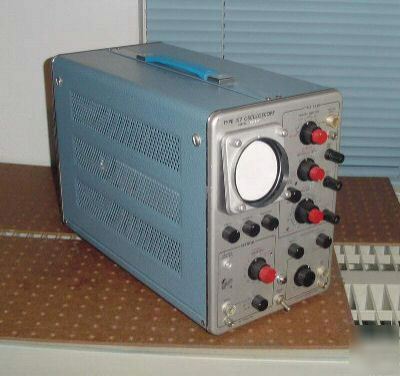

317 001445-1.jpg 317 001445-2.jpg
