Rego-fix "powrgrip" cat 40 collet system just reduced
Rego-fix "powrgrip" cat 40 collet system just reduced
You are invited to purchase or "MAKE YOUR BEST OFFER" on a "Excellent Conditioned" < Swiss Made> Rego-Fix "powRgrip" Cat #40 Precision Collet Holder System and having the following description and specifications:
The Rego-Fix powRgrip system uses a slightly tapered collet with a built-in set screw for tool height adjustment. The tool and the collet area pressed into the tool holder with six tons of force by means of a bench top hydraulic press. To unclamp the tool, the compression cycle is simply reversed. The clamping and unclamping cycles are very short, taking approximately 8 - 10 seconds per cycle. After the tool is inserted and the clamping cycle is complete, the tool is ready to use. Unlike shrink systems, no cool-down period is necessary. PowRgrip provides a high-precision gripping solution for today's high speed, high-performance cutting technology.
The powRgrip holders and collets have an extremely high life expectancy. Under normal operating conditions, more than 20,000 clamping cycles are guaranteed.
Some of the major advantages of shrink-fit systems include high gripping forces and low run-out. However, problems exist in maintaining consistent Z-axis height repeatability. In addition, shrink systems require dangerously high temperatures to work correctly, potentially leading to severe burns for its users. Finally, hazardous EMF (electromagnetic fields) radiation is a growing concern in workplace inviroments associated with many high-voltage shrink-fit systems.
The powRgrip system is strictly mechanical and does not generate heat or emit dangerous radiation. It features precise tool presetting, exceptionally fast tool changes, and run-0ut <0.00012" (0.003 mm)> at a distance of approximately four times the diameter of the tool. Futhermore, powRgrip is balanceable for high-speed applications by using the optional REGO-FIX balancing rings. The powRgrip delivers superior gripping force over that of a shrink system. The numerous benefits and versatility that powRgrip delivers provide a significant and cost-effective alternative to traditional shrink-fit systems.
WE CONSIDER ALL REASONABLE OFFERS AND ACCEPT MANY!
Tool change in less than 10 seconds.
Balanceable for up to 42,000 rpm's using Rego-Fix Hi-Q balancing rings (not included in sale).
Available for inch and metric diameters (only sizes listed below included in sale).
Highest transmittable clamping force even after 20,000 cycles.
Tool Presetting feature (not included in sale).
Operates with standard 110 Volts, 60 Cycle, 1 Ph.

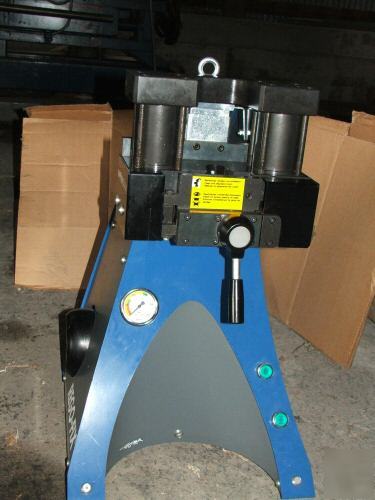

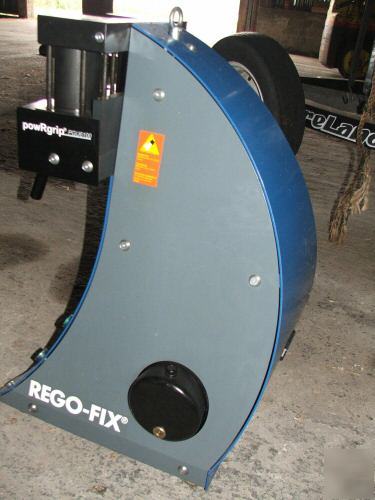

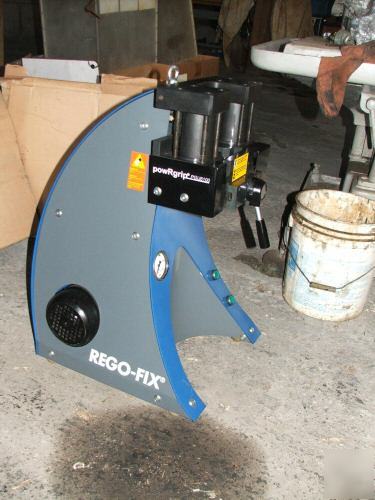

Rego-Fix Press with below name plate information
ATNG 45603.00/7610.30100 Part Number

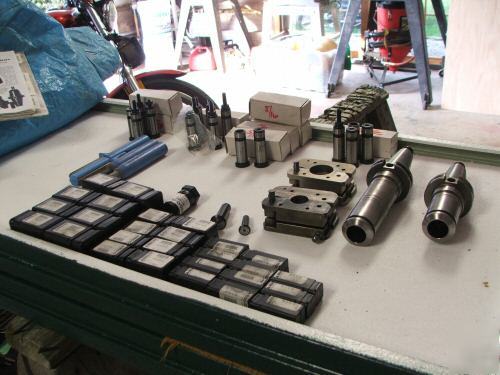

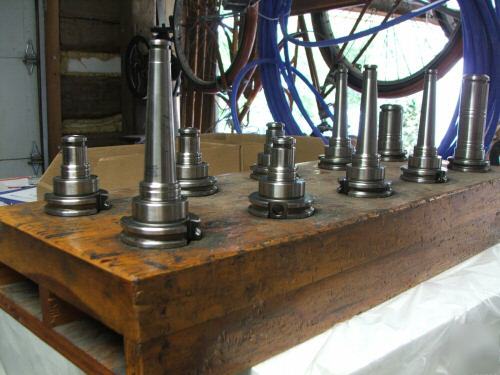

Cat #40 Rego-Flex Swiss Line H-Q Toolholders
Some of the below Cat #40 Toolholders look as they have never been used.
Approximately 60%, possibly more, of the below have NEVER been USED!
Approximately 60%, possibly more, of the below have NEVER been USED!
Weight approximately 200 - 300 pounds with all tooling.
Operation, Accessory and other manuals included in sale.
This Rego-Fix powRgrip System is in an excellent condition, with many of the accessories NEVER been used and can be inspected at our warehouse in Maysville, Ky 41056.
We thank you in advance for your interest in this item and should you have any questions please feel free to ask them of us and we will try to answer them.
Temporary Email: Janeberg@dontscrapit.com (Jane Berg)
