New bk precision power supply, 1761, triple output,
New bk precision power supply, 1761, triple output,
4 Digit Triple Output Pwr Sply ((2)0-35V, 0-3A/(1)2-6.5V, 5A Model#1761

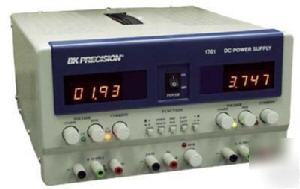

BK Precision´s new Model 1761 Triple Output DC Power Supply offers outputs with two 0 to 35V, 0 to 3A and one 2 to 6.5V, 5A outputs with two 4 digit LED displays. The 4 digit LED displays offer 10mV and 1mA resolution which provides higher accuracy. This makes it an ideal supply for power sensitive applications. The 1761 is fully overload protected and comes with a two year warranty.
* Continuously monitor voltage and current output on two 4-digit LED displays
* Connect two supplies in parallel to double the current output
* Connect two supplies in series to double the voltage output
* Operate continuously at full load without overheating
* Coarse and fine voltage controls
* Constant voltage or constant current operation
Line: (120 VAC ± 10%) <= 0.01% + 3mV
Temperature Coefficient: <= 300 ppm °C
Adjustable Current Range: 5% to 100% (A&B)
Line: (120 VAC ± 10%) <= 0.2% + 3mA
Voltmeter Accuracy: ±(0.5% rdg + 9 digits)
Ampmeter Accuracy: ±(0.5% rdg + 9 digits)
Overload Protection: Current limiting, Reverse polarity, overvoltage, Short circuit
Power Requirements: 108 - 132 VAC 60 Hz
Operating Temperature: -15° to 70°C <= 85% R.H.
Storage Temperature: -15° to 70°C <= 85% R.H.
Dimensions (H x W x D): 5.7" x 10.5" x 15" (145 x 267 x 381 mm)
Includes: Instruction Manual, Spare
