Rabbit RCM3720 color touchscreen application dev kit
Rabbit RCM3720 color touchscreen application dev kit

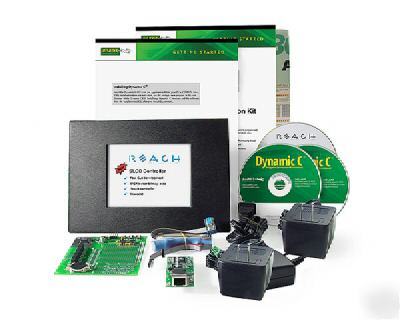

Color Touchscreen Application Kit #101-1062
The Color Touchscreen Application Kit provides all the necessary tools to incorporate a color touchscreen into a Rabbit-based embedded system.
The Rabbit 3000 microprocessor-based RCM3720 core module is designed for Ethernet/Internet applications, and features 512K Flash / 256K SRAM, 4 serial ports, and an extremely small footprint (2.95" × 1.20" / 75 × 30 mm).
Controller and TFT Color Touch Screen
The Reach Technology SLCD controller allows an LCD graphic display to be accessed as an intelligent serial device. Text can be written to the display and graphic images shown by using high-level commands. The touchscreen interface enables buttons to be defined on-screen, and return a serial string when touched. User-defined bitmaps provide a modern-looking interface, and include tabbed document interface pages and many different types of controls, such as radio buttons and check boxes.
This steel enclosure holds the SLCD board, industrial 12-24 V DC power supply, and the Hitachi 5.7" panel. The unit supports either RS-232 or RS-485 communications. The enclosure is easily mounted and waterproof.
Ideal for network-enabling security and access systems, remote automation, data logging, and industrial controls when coupled with RabbitWeb, FAT File System and SSL software modules
Color touchscreen adds a modern look to an embedded system
Complete microprocessor, on-board memory, royalty-free TCP/IP stack, and hundreds of sample programs reduce time-to-market by months
