24" x 120" gockel hydraulic-feed cnc surf grinder 21084
24" x 120" gockel hydraulic-feed cnc surf grinder 21084

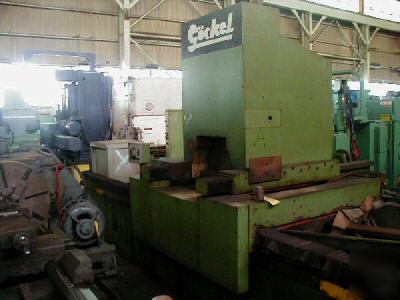

24" X 120" GOCKEL HYDRAULIC-FEED CNC
HORIZONTAL-SPINDLE SURFACE GRINDER
New 1985, Serial No 6765, Model UP10PL
CNC Control w/Auto Finish, Size Sensor, & Incremental
Replaceable Hardened & Ground Ways
Table Working Surface, W X L.............. 24" X 120"
Grinding Width Capacity, Maximum.......... 24"
Grinding Length Capacity, Maximum......... 120"
Height Under Grinding Wheel............... 12"
Clearance Width, Maximum.................. 34"
Grinding Wheel Diameter, Standard......... 20"
Grinding Wheel Width, Standard............ 5"
Table Longitudinal Feeds, Range........... 0 TO 160 IPM
Grinding Wheel Spindle Motor.............. 30 HP
Electrical System......................... 220-440/3/60
Overall Dimensions, L x W................. 24' x 7'10"
Overall Height............................ 9'9"
Weight, Approximately..................... 45000 LBS
NOTE: Controls Need Some Updating.
REPLACEMENT PRICE: Is Approximately....... $350,000.00
PRICE: F.O.B OUR WAREHOUSE............... $9,950.00
All machines/equipment subject to prior sale.
Temporary Email: Liz-wall@dontscrapit.com (Liz Wall)
