Miller dynasty tig welder 200DX ac/dc w/fc-kit plus+
Miller dynasty tig welder 200DX ac/dc w/fc-kit plus+

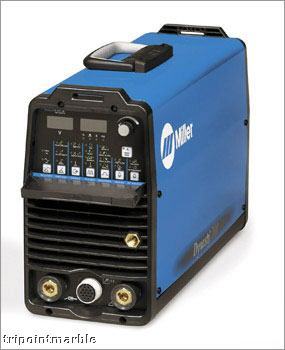

Miller Electric Mfg Co 907099011 - Dynasty 200 DX TIG Welder, AC/DC, 1- & 3- Phase, 1 - 200 A
(This welder was used as a Demo unit with only 3 hrs. of use)
This Welder was Purchased Locally in March of 2007 and was not un-boxed until 6 months ago. It was used a few hours for a sample piece and the job was out-sourced due to lack of Welding experience. It is in New condition and includes over one thousand dollars worth of extra parts.
The Dynasty 200 DX combines advanced inverter technology with Auto-Line technology, offering the most flexible AC/DC TIG/Stick power supply in the welding industry. Advanced Squarewave arc for improved weldability on aluminum and magnesium using low power. Continuous high-frequency is NOT needed because of the advanced Squarewave arc. Auto-Line provides state-of-the-art flexibility by automatically connecting to 120-460 VAC, single- or three- phase power without removing the covers to relink the power source. No longer is there a concern if you have the correct machine for the shop or the job site. AC frequency control range of 20 - 250 Hz provides control for a focused arc, resulting in better directional control to help produce desired arc/weld bead characteristics. Built-in pulser reduces heat input; adds arc stability. Inverter-based, AC/DC power source has state-of-the-art operator interface allowing the user extra set-up capabilities in a compact machine. Features more precise control of output parameters. And also features the Fan-On-Demand, Squarewave, Wind Tunnel Technology, Thermal Overload Protection, and LVC Line Voltage Compensation technology from Miller.
* Dynasty 200 DX offers pulse on/off, pulse frequency, peak % time, background amperage, initial amperage, initial slope time, final slope time and final amperage control.
* Industrial to Heavy Industrial Applications:
* Petro/Chem Fabrication
* Food/Beverage Industry
* Mechanical Contractors
* Input Power: 3- or 1-Phase Power
* 200 A at 18 V, 20% Duty Cycle
* 150 A at 16 V, 60% Duty Cycle
* 140 A at 15.6 V, 40% Duty Cycle
* 100 A at 14 V, 100% Duty Cycle
* 200 A at 28 V, 20% Duty Cycle
* 130 A at 25.2 V, 60% Duty Cycle
* 100 A at 24 V, 60% Duty Cycle
* 90 A at 23.6 V, 100% Duty Cycle
* Welding Amperage Range: 1-200 Amps (1-150 on 120 VAC)
* Power source is warranted for 3 years, parts and labor
* Original main power rectifiers are warranted for 5 years
Dynasty 200 DX TIG Welder, AC/DC, 1- & 3- Phase, 1 - 200 A

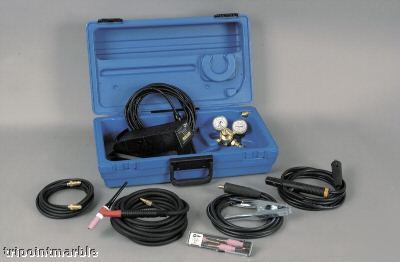

* MILLER CONTRACTOR KIT W.FOOT CONTROL TIG & STICK 195054 Cost $625.00
INCLUDES TIG TORCH, FOOT AMP CONTROL, GROUND CLAMP AND CABLE, REGULATOR AND HOSE, STICK ELECTRODE HOLDER, TIG ACCESSORY KIT AND CASE.
* High Pressure Cylinder 60CF Outright w/Argon Compressed Gas Cost: $166.22 + $29.95

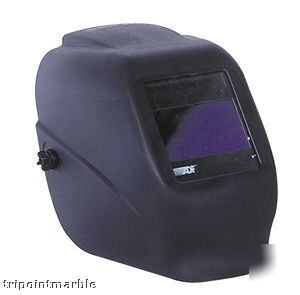

* Helmit Black Performance Series w/variable shade #8-#13 Cost: $199.00
* Glove TIG Kidskin 4" Cuff Large Cost: $7.50
* Bloc-It Heat Absorbing 10 oz. Tube Cost: $11.70
* Soapstone Holder Flat Cost: $1.31
* Miller Connection Kit, DINSE Qty. 1
* Weld Craft AK2C Kit, Accessory 17 Ceriate
* Inweld Tungsten 2% Thoriated 1/16" Diameter 7" Long (2 pieces)
LOCAL PICK-UP ONLY IN HOLBROOK, LONG ISLAND 11741
Item is Avaliable for Inspection between 8:30am-1:30pm(M-F)
Other hours by appointment only
