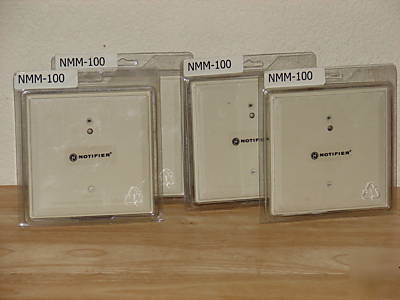

New notifier by honeywell nmm-100 monitor mod 4 alarms
New notifier by honeywell nmm-100 monitor mod 4 alarms
• Built-in type identification automatically identifies this device
as a monitor module to the control panel.
• Powered directly by two-wire SLC loop. No additional
• High noise (EMF/RFI) immunity.
• SEMS screws with clamping plates for ease of wiring.
• Direct Decade 01 – 99 (FireWarden-100) entry of address.
• LED flashes red during normal operation and latches
The NMM-100 Monitor Module is intended for use in intelligent,
two-wire systems, where the individual address of
each module is selected using the built-in rotary switches.
It provides either a two-wire or four-wire Class A or Class
B fault-tolerant Initiating Device Circuit (IDC) for normallyopen-
contact fire alarm and supervisory devices.
NMM-100 Applications — Use to monitor a zone of
four-wire smoke detectors, manual fire alarm pull stations,
waterflow devices, or other normally-open dry-contact
alarm activation devices. May also be used to monitor
normally-open supervisory devices with special supervisory
indication at the control panel. Monitored circuit may
be wired as an NFPA Style B (Class B) or Style D (Class D)
Initiating Device Circuit. A 47K ohm End-of-Line Resistor
(provided) terminates the Style B circuit. No resistor is required
for supervision of the Style D circuit. Maximum IDC
NMM-100 Operation — Each NMM-100 uses one of
99 (FireWarden-100) available module addresses on an
SLC loop. It responds to regular polls from the control
panel and reports its type and the status (open/normal/
short) of its Initiating Device Circuit (IDC). A flashing LED
indicates that the module is in communication with the control
panel. The LED latches steady on alarm (subject to
current limitations on the loop).
Nominal operating voltage: 15 to 32 VDC.
Maximum current draw: 5.1 mA (LED on).
Average operating current: 400 ?A (LED flashing).
Temperature range: 32°F to 120°F (0°C to 49°C).
Humidity range: 10% to 93% noncondensing.
Dimensions: 4.5" (11.43 cm) high x 4.0" (10.16 cm) wide x
1.25" (3.175 cm) deep. Mounts to a 4.0" (10.16 cm) square
