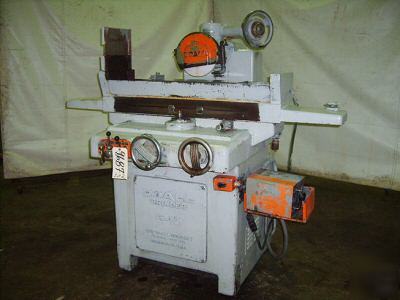

DOALL MODEL G-10 HYDRAULIC SURFACE GRINDER
Work height, maximum (table to wheel) 12-1/2"
Table speed (variable) 5 - 75 FPM
Table movement per revolution of handwheel 2-3/8"
Crossfeed automatic increments 0 - .250"
Crossfeed movement per revolution of handwheel .100"
Overall dimensions 105"L x 67"D x 75"H
2 HP 220/440 3/60 Main spindle motor
1/4 HP A/C Power elevation motor
8" x 24" Electromagnetic chuck with chuck controls
Self contained hydraulic system
