1/4" npt flushface hydraulic quick disconnect couplings
1/4" npt flushface hydraulic quick disconnect couplings

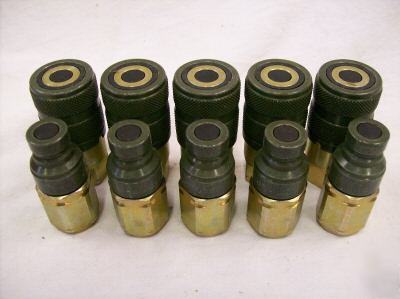

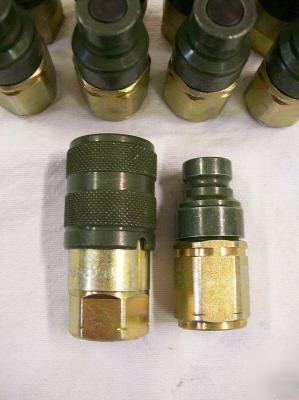

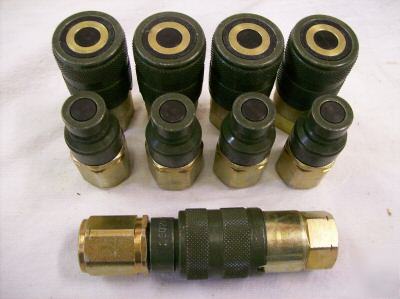

5 Sets, 1/4" Female NPT (pipe) Thread Hydraulic Quick Disconnects
***** NEW Condition / NEVER Used *****
* Manufactured in Italy by DNP Industriale Srl. www.dnp.it
* ISO 16028 flush face design (minimal spillage)
* Carbon steel construction with Zinc Dichromate plating
* 1/4" female NPT threaded ports
* Nominal 1/4" connection size/thru porting (FULL-FLOW)
* Buna-N seals, PTFE backup rings
* -13 to +257 F degree temperature rating
* 5075 PSI maximum working pressure
* Male half is 2.05" in length
* Female half is 2.32" in length
* Overall length of set when coupled is 3.94"
* Interchangeable with Aeroquip FD89 and Parker FE Series couplers
Thanks for looking and good luck!
