Gleason 3" straight bevel gear generator (425/G3W)
Gleason 3" straight bevel gear generator (425/G3W)

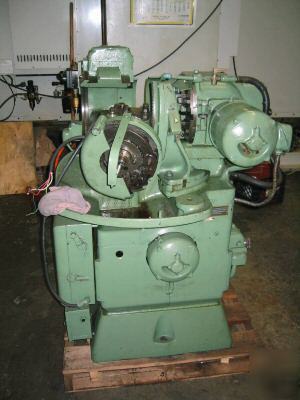

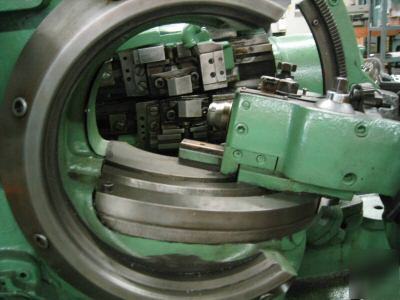

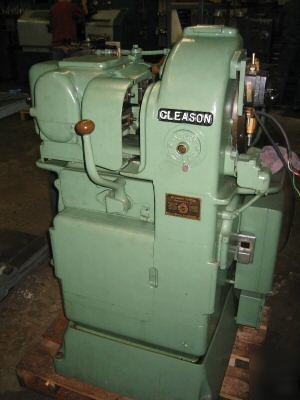

Gleason 3" Straight Bevel Gear Generator.
Model: 425 (Originally designated G3W)Max pitch diameter: 4-7/16"Cone Distance 2-1/4" Max, 1/2" MinPitch Angle, Shafts at 90 Degrees 75 Deg. 58' Max., 14 Deg. 2' MinMin Teeth in Miter Gears: 12Max Pitch: 8 DPLongest Face: 7/8"Range of Number of Teeth: 10 to 80Workspindle (#9 Gleason Taper)Dia. of Taper Hole, Large End: 1-1\16"Taper per Foot: 1/2"Depth of Taper: 3"Speed Range: 200 to 800 RPMFeeds: 1-1/2 to 30 seconds per toothFloorspace required approx. 33" x 35"Additional pictures available upon request.
For any questions, please contact Tom Cardone at h.valenzuela@dontscrapit.com or call (***)-212-0775.
