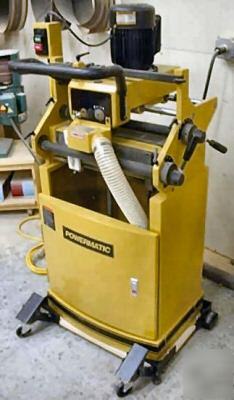

2004 powermatic ( dt 45 ) single end manual dovetailer
2004 powermatic ( dt 45 ) single end manual dovetailer
To schedule an appointment for inspection or with any questions you may have please contact us at (***) 839-2645 or by email at richardharmon@dontscrapit.com.
Min. Work Piece Size (L x W/in.) 7-7/8 x 2-3/8
Max. Work Piece Size (L x W/in.) 31 x 11
Min. Dovetail Height (in.) 3/16
Max. Dovetail Height (in.) 3/4
Min. Front Thickness (in.) 9/32
Max.Front Thickness (in.) 1-3/4
Min. Side Thickness (in.) 9/32
Max. Side Thickness (in.) 1-3/16
Table Height From Floor (in.) 35
Dust Collection Ports Dia. (in.) 2-1/2 & 4
Dust Collection Min. CFM Required 500
Used to cut dovetails for drawers and various furniture components. The machine is equipped with a router spindle which allows cutting dovetails of adjustable height. The DT45 can machine four types of dovetails with different pitches. Locking and unlocking of pieces takes place manually by an eccentric clamp.
· Four separate dovetail centerlines 1", 1-1/2", 2" and 2-1/2"
· 1HP, 1Ph, 115/230V motor Eccentric spindle collet for resharpened cutters
· Cutter height of 3/16" to 3/4"
· Extra large softgrip handle provides positive control and comfort
· The precision carriage bearings are sealed on both ends to eliminate dust buildup
· Visual stylus and template aids in guiding the carriage
· Spring loaded carriage makes for smooth effortless dovetail cutting
· Material stops provide convenient position of the workpiece
· Cast iron and steel construction for added stability and durability
Overall Dimensions (L x W x H/in.) 33 x 33 x 61
