Sight glass liquid w/moisture ind.3/8" m x 3/8 fm flare
Sight glass liquid w/moisture ind.3/8" m x 3/8 fm flare

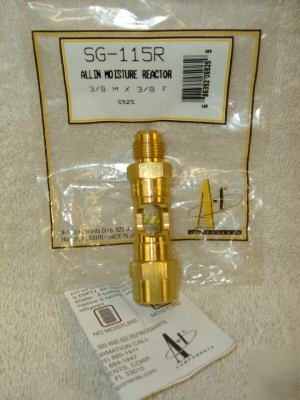

Liquid Eye, Sight-Glass with MOISTURE INDICATOR
3/8" Female Flare x 3/8" Male Flare
The Series 100 Allin Liquid Eye manufactured by Fast Components, Corp. has the unique "SEE-THRU" feature that is more readable than other sight glasses.
The dot on the tube is magnified when the tube is full of refrigerant to give you a quick, easy indication.
This pretested liquid indicator can be installed in any position in the liquid line.
When the line is FULL the opposite viewing port "eye" will appear enlarged.
If the line is EMPTY the opposite port "eye" will be smaller.
If bubbles are seen while the machine is running , the unit is short of refrigerant.
This sight glass is easier to read in minimum light.
It provides a quick and easy indication of refrigerant in the tube, as well as the presence of moisture.
When moisture is present, the color bars on the band change color.
This pre-tested Moisture Reactor indicator can be installed in any position in the liquid line.
When all of the color bars are GREEN, this indicates no moisture.
If every other bar is GREEN and YELLOW, it indicates moisture in the system.
Average time to stabilize is 8 hours.
