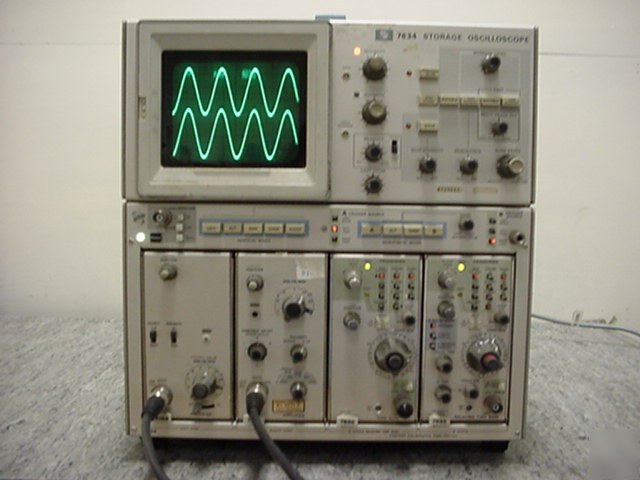

Tektronix 7834 storage osc w/ 7A16A 7A19 7B80 & 7B85
Tektronix 7834 storage osc w/ 7A16A 7A19 7B80 & 7B85
Tektronix 7834 Storage Osc w/ 7A16A 7A19 7B80 & 7B85
****Includes 7A16A, 7A19, 7B80, 7B85 PlugIns****
Vertical Operation at Low & High frequency - OK
Sweep operation at Low & High Sweep Rate - OK
Frequency performance good to beyond 400MHz
Some control noisy, generally OK
The Tektronix 7834 has stored writing speed of 2500 cm/microS, enabling storage of single-shot rise times to 1.4 nS.
Storage modes include bistable, variable persistence, fast bistable, and fast variable persistence
The Tektronix 7A16A is a used Vertical Plug-In that provides a bandwidth of 225 MHz
5 mV/div to 5 v/div calibrated deflection factors; 1 Mohm input
The Tektronix 7A19 is a used High Bandwidth Plug-In Amplifier that has a maximum bandwidth of 600MHz
The 7B80 Delayed Time Base Plug-In is recommended for use with 7700, 7800, and 7900 Mainframes to provide optimum bandwidth / sweep-speed compatibility, but may also be used in any slower 7000-Series Mainframe. Calibrated Time Base: 1 ns to 5 s/div with 1.5% accuracy (50 ns to 0.5 s/div) Triggering to 400MHz Variable Trigger Holdoff Peak-to-peak Auto Triggering
Tek 7B85 Delta Delaying Time Base Plug-In
Delta Time Measurements with CRT Readout
Delay Time Measurements with CRT Readout
Vertical Trace Separation between Two Delayed Sweeps
