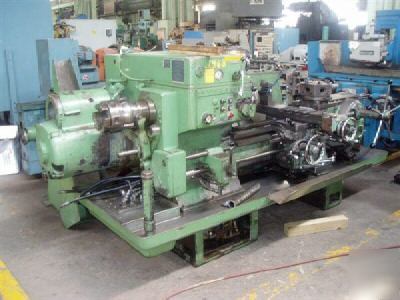

#5 WARNER & SWASEY "SQUARE-HEAD" RAM-TYPE TURRET LATHE
New 1966, Serial R2106239, Lot 28, Model 5,
Hole Thru Spindle...................... 4.6"
Bar Capacity, Round.................... 4.5"
Bar Capacity, Square................... 3.19"
Bar Capacity, Hexagon.................. 3.875"
Swing Over Bed Ways.................... 20"
Swing Over Guides...................... 17.75"
Swing Over Cross-Slide................. 10.25"
Carriage Longitudinal Travel (Z-Axis).. 23.125"
Cross-Slide Cross Travel (X-Axis)...... 10"
Turret Longitudinal Travel (Z-Axis).... 13"
Spindle-Face to Turret, Maximum........ 36.25"
(24) Spindle Speeds, Range............. 25 to 1000 RPM
(6) Carriage Long Feeds (Z-Axis)....... .0045 to .045 IPM
(6) Cross-Slide Cross Feeds (X-Axis)... .003 to .027 IPM
(6) Turret Longitudinal Feed (Z-Axis).. .005 to .048 IPM
Floor Space Required, L x D............ 20'1" x 5'7"
Weight, Approximately.................. 11100 LBS
PRICE: F.O.B. OUR WAREHOUSE........... $9,950.00
All machines/equipment subject to prior sale.
