Uni-t digital lcr inductance, capacitance meter dmm
Uni-t digital lcr inductance, capacitance meter dmm

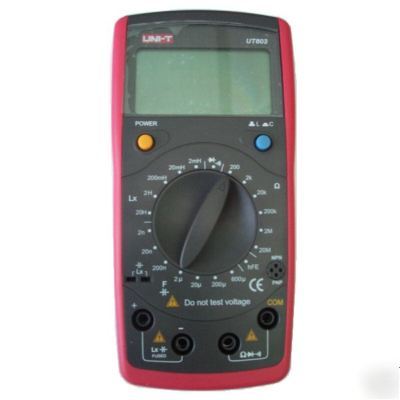

UNI-T UT603 Inductance, Capacitance LCR Digital Meter
An accurate LCR meter is essential equipment when developing audio crossover circuits, switchmode power supplies, resonant filters, RF circuits and the like. As well as resistance to 20M ohm, this stylish LCR meter measures capacitance from 2nF to 600µF on polarised (electrolytic) and non-polarised capacitors, and inductance from 2mH to 20H.
Measurements can be made by using either the test leads or the “plug-in†connectors on the front panel. The large 3.5 digit display is easy to read, and there is also a transistor hFE test function for NPN and PNP devices.
Supplied with high quality silicon rubber test leads, rubber holster and carry case. A workbench essential for developing audio crossover circuits, switchmode power supplies and RF circuits.
• “Plug-in†test socket for C and L
• Supplied with quality silicon rubber test leads and rubber holster
Inductance: 2mH, 20mH, 200mH (Testing frequency 1kHz/150uA)
Inductance: 2H, 20H (Testing frequency 100Hz/15uA)
Capacitance: 2nF, 20nF, 200nF (Testing frequency 1kHz/150mV)
Capacitance: 2µF, 20µF, 200µF (Testing frequency 100Hz/15mV)
Capacitance: 600µF (Testing frequency 100Hz/1.5mV)
Resistance: 20Ohm, 200Ohm, 2kOhm, 20kOhm, 200kOhm, 2MOhm, 20MOhm
Transistor test: hFE (PNP and NPN)
Display: 3.5 digit, 1999 count
Protection: 315mA M205 fused on L/C input
Dimensions: ˜ 83W x 38D x 172H mm
