Makfil system rc-90/3 linear cable collector
Makfil system rc-90/3 linear cable collector
MAKFIL SYSTEM RC-90/3 CABLE COLLECTOR
This does not mean that the unit doesn’t work, only that we have not tested or checked it out.
This may also mean that we are not knowledgeable in that specific item.
Please call Brent Toll Free at 1-866-MHZ-ELEC (1-(***)-649-3532) if you have questions
between the hours of 9:00 AM and 4:00 PM Monday thru Friday Pacific Time.
The Item may vary from picture as manufacture may change model appearance.
All information, including description, specifications and features are from a manufacturers
data sheet or manual and are subject to change without notice.
Meaning that all information included in the description, specifications and features
What you see is what you get! If it doesn’t show it you probably won’t get it!

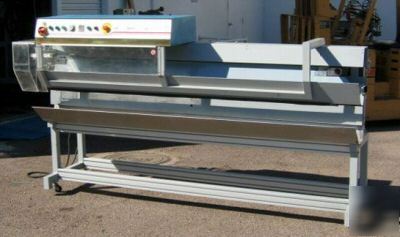

MakFil System RC-90/3 Cable Collector
* Serial Number/Code Number: 317
* Electrical: 220 Volts, 2.5 Amps, 50/60 Hz
* The MakFil System RC-90 is a linear cable collector equipped with a special system that allows the wires to be collected in batches regardless of the quantity set on the cutting and stripping machine. When working an automatic cycle, the operator picks up the batch, which is deposited in a tray under the machine, without having to stop production.
Technical Data Specifications:
* Ø wire: min. 1 mm - max. 16 mm
* Maximum Length of Wire: 3 m
* Power Supply: 220 Volts, Single Phase, 50/60 Hz
* Air Consumption: 0.6 l/Cycle Compressed Air
* Maximum Number of Wires per Batch: 9,999
* Acoustic pressure: < 60 dB
