Keithley 2420 high current sourcemeter, 60V. 3A, 60W
Keithley 2420 high current sourcemeter, 60V. 3A, 60W

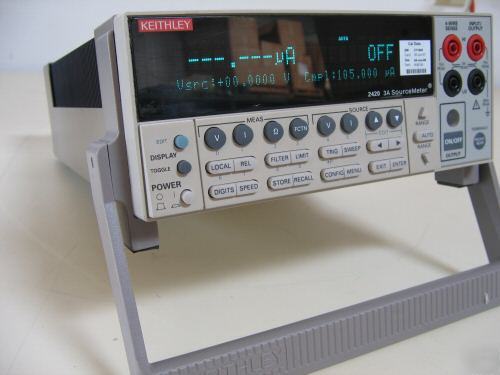

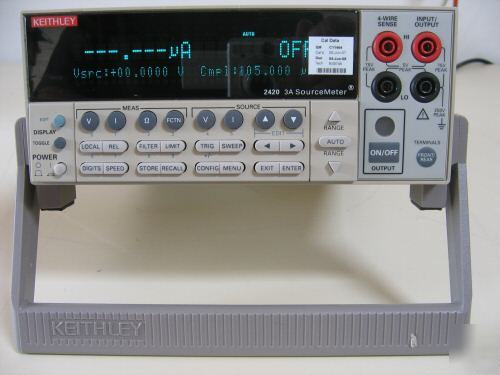

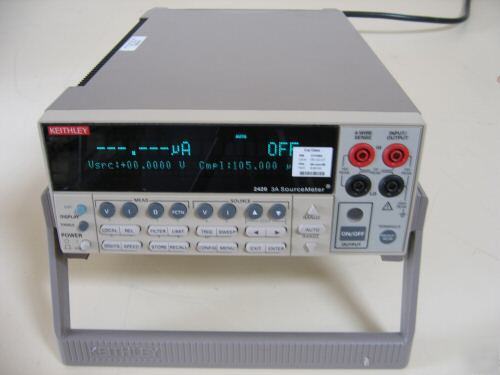

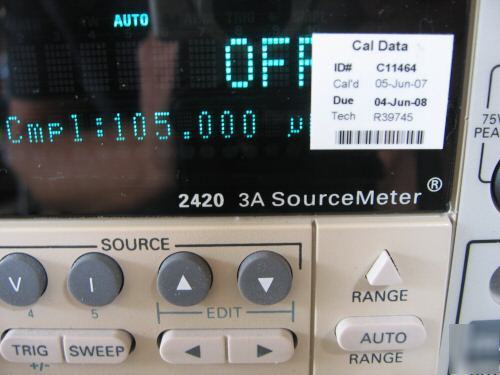

Keithley 2420 High Current Digital SourceMeter, 60V, 3A, 60W
* Description: The Keithley 2420 High Voltage SourceMeter is a 60W instrument designed to source and measure voltage from ±5µV (source) and ±1µV (measure) to ±60V and current from ±100pA to ±3A. Production test applications for the Model 2420 include resistors and resistor network devices that must be tested at higher current levels, thermistors, solar cells, batteries, and high current or medium power diodes, including switching and Schottky diodes. The Model 2420 is also suitable for IDDQ testing of CMOS integrated circuits and monitoring the current consumption of battery-powered medical devices such as pacemakers. Other features include
* 0.012% basic accuracy with 5 1/2-digit resolution
* 6-wire Ω measurement with programmable I source and V clamp
* 1700 readings/second at 4 1/2 digits via GPIB
* Built-in comparator for fast pass/fail testing
* Digital I/O for fast binning and connection to component handlers

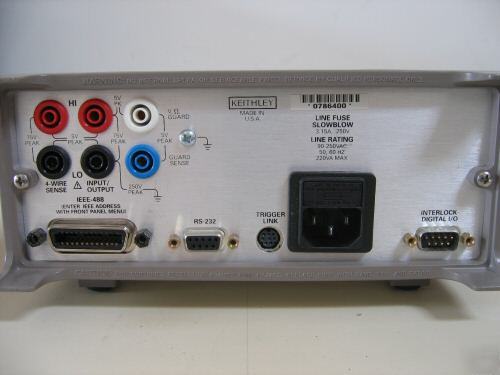

* GPIB, RS-232, and Trigger Link interfaces
* TestPoint and LabVIEW drivers
* Cosmetic Condition: Excellent
* Working Condition: Came from working environment.
* Other Comments / Notes: None
* Warranty: Rest assured that your purchase includes a 3-day DOA Guarantee. If the item is DOA, you will need to notify us within 3-days of receipt. Item(s) must be returned in the same condition as received within 7 days of receipt. (See below for further details).
We strongly recommend that you properly pack and insure the package against loss or damage. It is ultimately your responsibility that your returned product arrives at our location within the allotted return time frame in the same condition it was sent.
