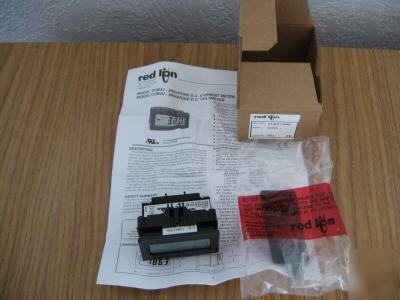

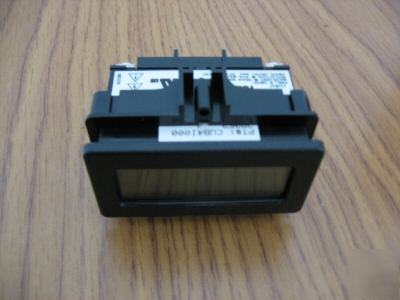

> Red lion CUB4I000 miniature d.c. current meter
Red lion CUB4I000 miniature d.c. current meter
Red lion CUB4I000 miniature d.c. current meter
I - MINIATURE D.C. CURRENT METER
* 3 1/2 Digit, 0.6" (15.2 mm) LCD
* Reflective, Red or Green w/Backlighting
* 0-199.9 uA through 199.9 mA DC
LCD, POSITIVE REFLECTIVE OR NEGATIVE TRANSMISSIVE
WITH YELLOW/GREEN OR RED BACKLIGHTING
0 to 199.9 mV, 1.999 V, 19.99 V, 199.9 V (CUB4V)
0 to 199.9 μA, 1.999 mA, 19.99 mA, 199.9 mA (CUB4I)
0.6 INCH (15.2 mm) HIGH LCD DIGITS
WIRE CONNECTIONS MADE VIA SCREW CLAMP TYPE
FITS DIN STANDARD CUT-OUT 2.68" (68 mm) x 1.30" (33 mm)
NEMA 4X/IP65 SEALED FRONT PANEL BEZEL
DISPLAY: 3½-digit (-1999 to 1999), 0.6" (15.2 mm) high digits. Minus (-) sign is displayed when voltage or current is negative.
DECIMALPOINTS: DIP switch selectable decimal points allow the display to be read in tenths, hundredths or thousandths.
: 9 to 28 VDC @ 35 mA typ., 50 mA max. Above 26 VDC, derate operating temperature to 50°C.
(DIP Switch Selectable) (JMPR. Selectable)
ACCURACY: (@ 23°C, less than 85% RH)
199.9 μA, 1.999 mA, 19.99 mA ranges
OVERRANGE RATINGS, PROTECTION & INDICATION:
9 to 28 VDC power circuit is not isolated from the signal circuit.
: Overrange is indicated by a “1†displayed in the most significant digit and the blanking of the three least significant digits.
READING RATE: 2.5 readings per second
RESPONSE TIME: 1.5 seconds to settle for a step change
NORMAL MODE REJECTION: 60 dB 50/60 Hz
