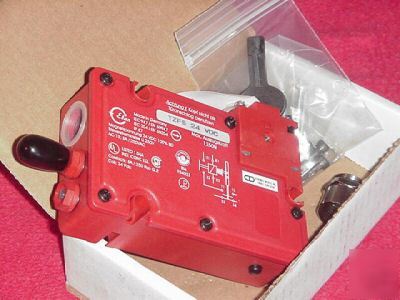

Elan schmersal schunk tzfs 24VDC door safety interlock
Elan schmersal schunk tzfs 24VDC door safety interlock
Series TZM/TZF - thermoplastic enclosure - holding force 1750 N
* Manual release, emergency exit or emergency release
* Power to unlock / power to lock principle
* Actuating play 11 mm in direction of actuation
* 230 VAC Always state required supply voltage when ordering
* For manual unlocking using triangular key TZ-69 (included in delivery for S and N versions)
* For maintenance, setting-up, etc.
* Mounting only outside the guarded area
* Actuation from within the hazardous area
For the version with LED, the monitoring contacts are not potential-free
* Available with connector on request
Contact 21-22 must be integrated in the safety circuit
Circuit diagrams show de-energised condition with actuator inserted (0 in switch travel diagram).
Interlocks with power to lock principle may only be used in special cases after a thorough evaluation of the accident risk, since the guarding device can immediately be opened on failure of the electrical power supply or when the main switch is opened.
The actuator TZ/CO is included in delivery.
glass-fibre reinforced thermoplastic, self-extinguishing
zinc-plated steel / zinc diecast
change-over contact with double break, type Zb or 2 NC contacts, with galvanically separated contact bridges
max. 2.5 mm² (incl. conductor ferrules)
Rated impulse withstand voltage Uimp:
Rated operating current/voltage Ie/Ue:
24 VDC; 110 VAC, 50/60 Hz; 230 VAC, 50/60 Hz
