Belt washer parts cleaner hot jet water cleaning
Belt washer parts cleaner hot jet water cleaning

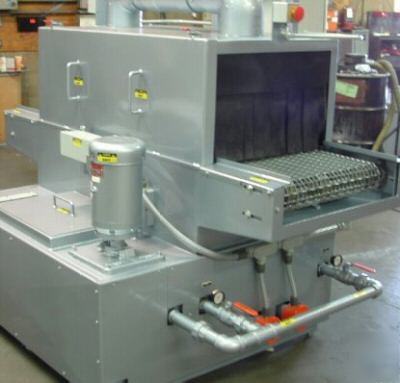

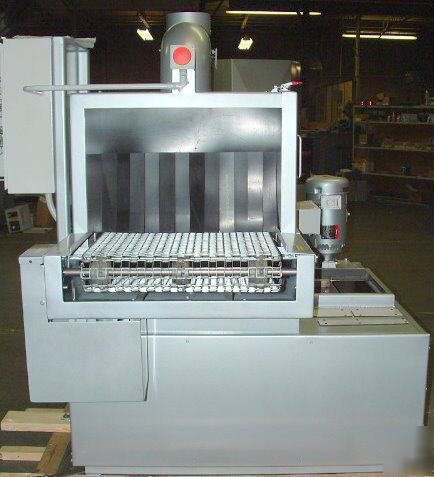

NEW MAJOR BRAND PASS THRU BELT WASHER

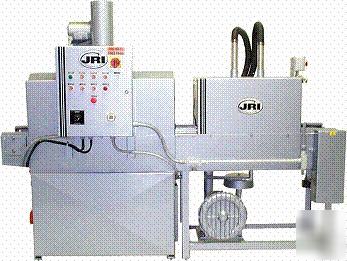

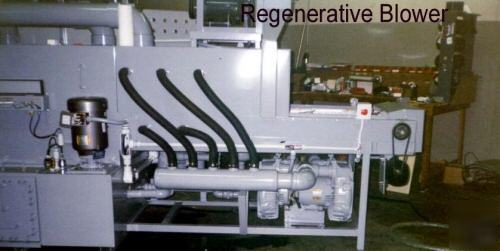

UNIT SHOWN HAS OPTIONAL BLOW OFF CHAMPER
This is a NEW unit to which you can add custom options. The continuous cleaning adds to your productive.
WASH STAGE:________________________________________________________
Re-circulating.- mild steel construction
Approximate overall dimensions: 84†long X 62†wide X 72†tall
Part opening: 24†Wide X 15†Tall
Breakdown of zones within the unit:
* 16†(1’ 4â€) clear load area

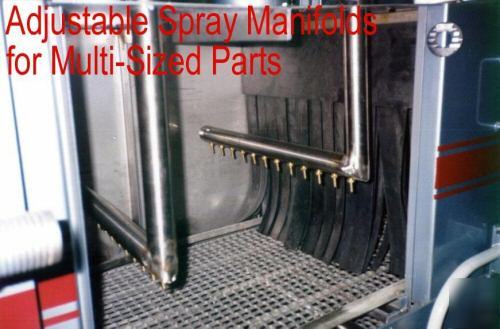

* 28†(2’ 4â€) spray wash zone
* 12†(1’) drip/exit from wash
* 16†(1’ 4â€) exit from wash
Conveyor belt type: 24†Wide, 1†X 1†Galvanized Steel, flat wire clinched edge
Max load of conveyor is 1,000 lbs. evenly distributed.
Drive system: Variable speed, Direct Current (DC) Operating speed is 1 to 12’/min. with current sprocket-to-sprocket ratio.
Tunnel accessibility: The tunnels are equipped with removable side panels for access to
the entire interior of the tunnel.
Tank accessibility: The solution tank is equipped with a large “lift-off†hatch to provide
access to the tank for cleaning and/or service.
WASH STAGE: _ _______________________________________________________
“Closed-Loop†– Re-circulating
Heat source: 36KW Electric heat
Solution capacity: 200 Gallons-Insulated
Drain: 2†Conveniently located for ease of draining.
THE FOLLOWING OPTIONS ARE INCLUDED IN THE BASE PRICE QUOTED ABOVE
MCCS-1000, CONVEYORIZED CLEANING SYSTEM,
Basic conveyorized cleaning system in a mild steel configuration with wash section.
CT-800 – CHIP TRAY,…………………………………………..(included in base price)
.. The chip tray consists of a mild steel tray, which is mounted under the conveyor belt. This tray in turn diverts all of the solution to a central point in the tank access area, where it is forced to flow through an easily removable, mild steel perforated basket. After flowing through the basket, the water returns to the main tank. This option retains the majority of the sludge and particulate matter in the basket for easy removal.

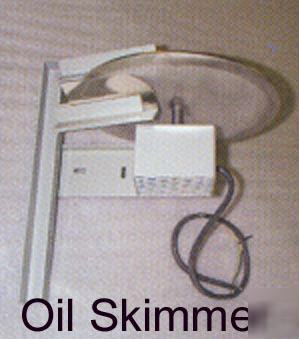

OS-100SS – DISC TYPE OIL SKIMMER,...………………..…(included in base price)
* many custom options available
Call (***)-862-6633 - Tell them Quality Systems is the Supplier
Please visit http://www.clune.net/ lessee_01.php
Fast, Easy and Same Day Answer
CALL Gary 866- 540-7575 -with questions. see other models in our store.
