200" x 100' tahl engineering gap lathe huge capcity
200" x 100' tahl engineering gap lathe huge capcity

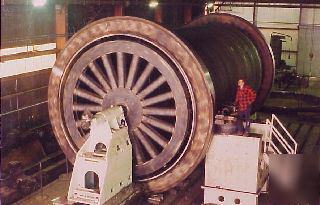

1) Used 230†x 100’ TAHL Engineering Gap Lathe, Modular Floor Plate Type, Vari-Speed
Swing Over Floor......................................... 230"(180†w/o risers)
Swing Over Cross Slide............................... 230"(180†w/o risers)
Swing in Gap................................................ 230"(180†w/o risers)
Distance Between Centers............................ 100 FT(nominal)
Spindle Speeds Range................................... 0 to 20 R.P.M.
Feeding Ranges (compound):……………… 0-4 I.P.M.
Compound Angle Range………... 0-90 Degrees
Diameter of Faceplate……………………… 144â€
Number of Faceplate T-Slots………………. 20 (radial pattern)
Tailstock Spindle Taper……………………. 6 M.T.
Main Drive Motor.......................................... 30 HP DC
Electrical Characteristics............................... 230/460 V.A.C. DC
Reliance Electric D.C. Motor Generator Set with Controls
3 Speed Geared Headstock w/Faceplate Drive
Compound with 2 Swivel Heads & Power Feed
Complete Set of 24†Riser Blocks
2 ea. 14’ Diameter x 12†Thick Adapter Plates
Complete Engineering Documents & Drawings
Overall Dimensions: (4-5 Truckloads)
Weight:……………………196,000 Lbs. (estimated)
F.O.B………………………Casa Grande, AZ.
For more information you can contact Charles or Danny in any of the following ways:
