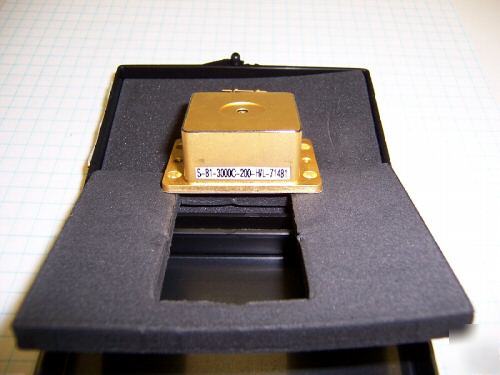

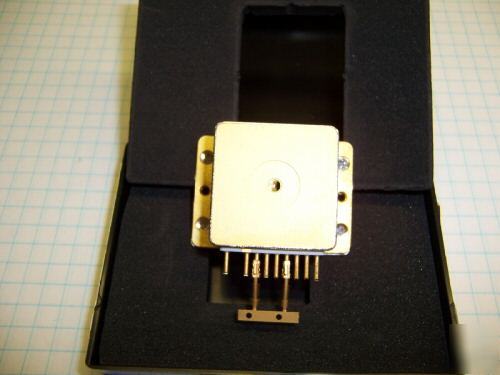

> COHERENT 3 WATT 808NM HIGH POWER LASER DIODE WITH FIBER LENS
EXCELLENT CONDITION, MANUFACTURED BETWEEN 2003 AND 2006, THESE WERE PART OF A PROTOTYPE SYSTEM AND SOME HAVE LESS THAN 200 HOURS ON THEM.
THESE ARE GOOD DIODES, NOT ONES THAT WERE REJECTED FOR LOW POWER AFTER BURN-IN YOU MIGHT SEE LISTED.
DIVERGENCE, FAST AXIS < 3 DEGREES.
DIVERGENCE, SLOW AXIS < 10 DEGREES.
T/E REQUIREMENTS, 8 VOLTS @ 5 AMP MAX.
WAVELENGTH TEMPERATURE COEFFICIENT, 0.28 nM/DEGREE C.
THE BEAUTY OF THIS DIODE IS THAT IT HAS AN INTERNAL FIBER LENS THAT PRODUCES A LOW DIVERGENCE ON FAST ANGLE.
WITH A MUCH IMPROVED SOURCE BEAM, OVER A DIODE WITHOUT THIS LENS, ADDING A GRIN LENS WILL GIVE YOU AN EXCELLENT SMALL ROUND SPOT TO PUMP YOUR CRYSTAL WITH. NO NEED TO USE EXPENSIVE ANAMORPHIC PRISM SETS TO REDUCE THE DIVERGENCE.
HERE IS YOUR CHANCE TO BUILD SOME AFFORDABLE HIGH POWER END PUMPED DPSS UNITS!
THESE DIODES WILL GIVE A MUCH BETTER QUALITY MODE AND EFFICIENCY THAN SIMILAR POWER LISTED DIODES.
THES DIODES ARE CAPABLE OF EASILY PRODUCING >500mW OF 532nM FREQUENCY DOUBLED GREEN LIGHT WITH A DPM MODULE!
YOU WILL NEED A POWER SUPPLY, DIODE DRIVER, AND T/E COOLING CONTROLLER FOR OPERATION. CONTACT ME IF YOU NEED A DRIVER AND CONTROLLER.
HERE IS A LINK TO THE MANUFACTURE FOR MORE INFORMATION,†http:// /downloads/780_to_830_nm_DevicesDS.pdfâ€.
