Juki dln-9010 direct-drive, high-speed, needle-feed
Juki dln-9010 direct-drive, high-speed, needle-feed

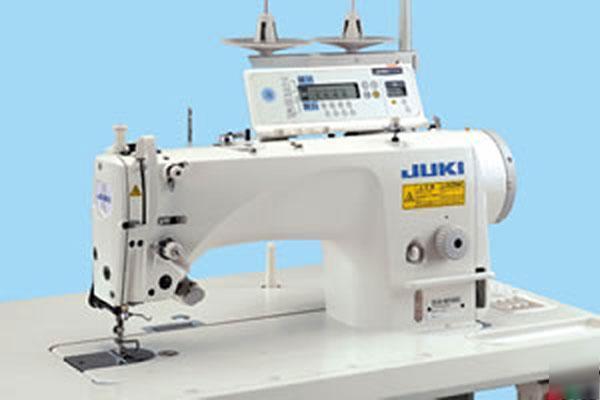

Juki DLN-9010 Direct-drive, High-speed, Needle-feed
This is the Juki DLN-9010, a needle-feed type DDL-9000 Series sewing machine, that has been highly applauded as the top-of-the-line lockstitch machine with a thread trimmer. It has inherited the advanced features of the DDL-9000 Series, such as the direct-drive system, semi-long arm and elimination of the oil pan. In addition, it comes with a highly reliable needle feed mechanism. The needle feed mechanism responds to a wide range of applications such as the sewing of outerwear, runstitching of men???s shirts, etc. and the attaching of various parts to garment bodies.
Direct-drive, High-speed, Needle-feed, Lockstitch Machine with Automatic Thread Trimmer
* The machine ensures accurate stitch pitches (stitch length) as well as preventing slippage of the upper cloth thanks to the needle-feed mechanism which offers excellent efficiency of feed.
* The needle feed mechanism is a so-called "dry type", which does not require oiling. With this mechanism, a highly reliable machine structure, free from oil leakage troubles, has been achieved. The frame, which requires only a minute quantity of lubricating oil, is structured to eliminate oil leakage.
* The machine can be easily changed over from a needle feed machine to a bottom feed machine, through a simple adjustment and gauge replacement. It is a useful feature for those users who also want to use the machine simply as a regular bottom feed type machine in accordance with applications and processes.
* A horizontal-type automatic thread trimmer mechanism ensures speedy and reliable thread trimming.
* The hinge has been moved 10cm behind the needle entry point to ensure the material won't be caught, thus contributing to upgraded workability.
* Application: For light- to medium-weight materials For heavy weight materials
* Max. sewing speed: 5,000rpm 4,000rpm
* Max. stitch length: 4.5mm*
By hand: 5.5mm, By knee: 15mm(max.), Auto: 10mm
* Needle (at the time of delivery): DB1(#11) #9 - #18
* Hook: Automatic-lubricating full-rotary hook
* Lubrication: Minute-quantity lubrication to needle bar and hook
* Lubricating oil: JUKI New Defrix Oil No.1(equivalent to ISO VG7)
* Distance from needle to machine arm: 300mm
* Bobbin thread winder: Built-in the machine head
* Micro-lifter screw :Provided as standard
* Machine head drive: Compact-sized AC servomotor that is directly connected to the main shaft (direct-drive system)
* Automatic reverse feed function: Provided as standard (built-in solenoid type)
* *The maximum sewing speed is 4,000 rpm or less in cases where the maximum stitch length is 3.5 mm or more
